8000 kg5730x1450x2040 mm26.6 m20.0 m

Denne nye modellen har nå fått et redusert stabiliseringsfelt, som betyr at den kan arbeide der det er smalt og særdeles lite plass. Åtte tonn løftekapasitet, 27,5 meter høyde, 2 tonn pick&carry funksjon. En kran med unike egenskaper uten konkurranse på markedet.


1 Hook & Pulley Hook & Pulley

JIB working with hook or pulley mode

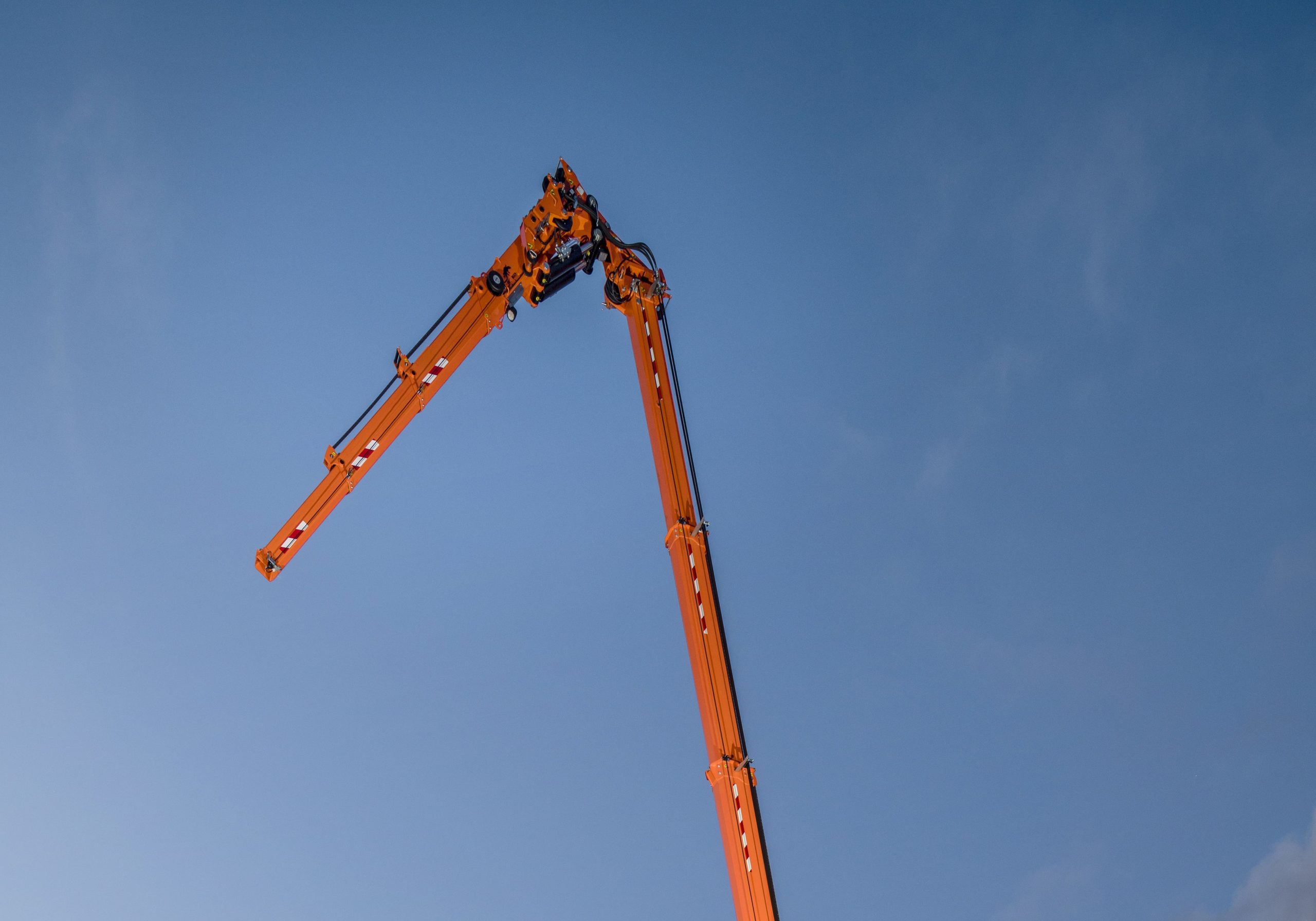

Three different JIB
Three different JIB

- 800 Kg Hydraulic flying JIB
- 800 Kg Mechanical flying JIB
- 800 Kg Searcher hook

3 Hydraulic Grabber Manipulator Hydraulic Grabber Manipulator

300 Kg pipe and beam manipulator

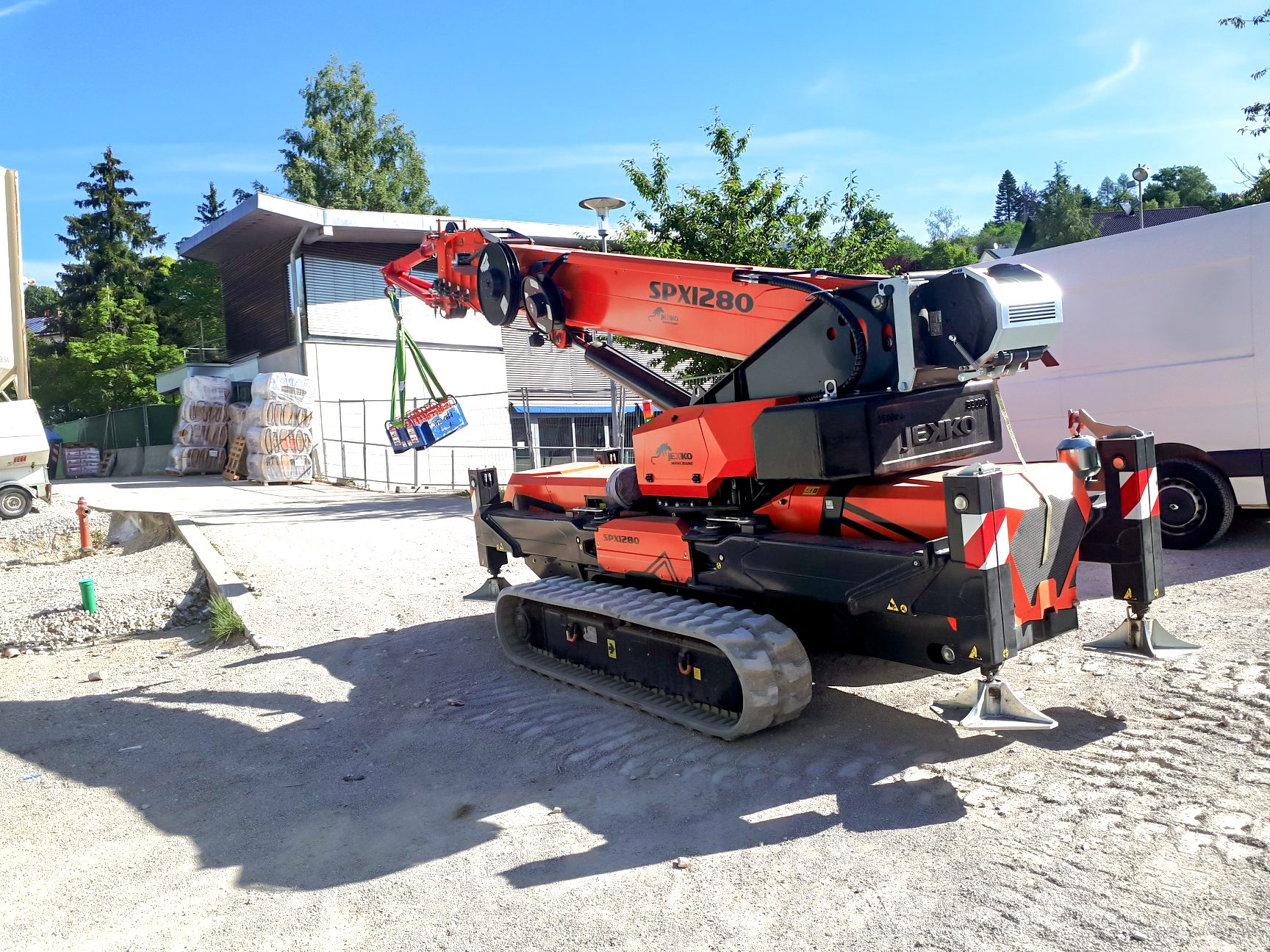

Pick & Carry
Pick & Carry

2 tons 360° rotating pick & carry capacity

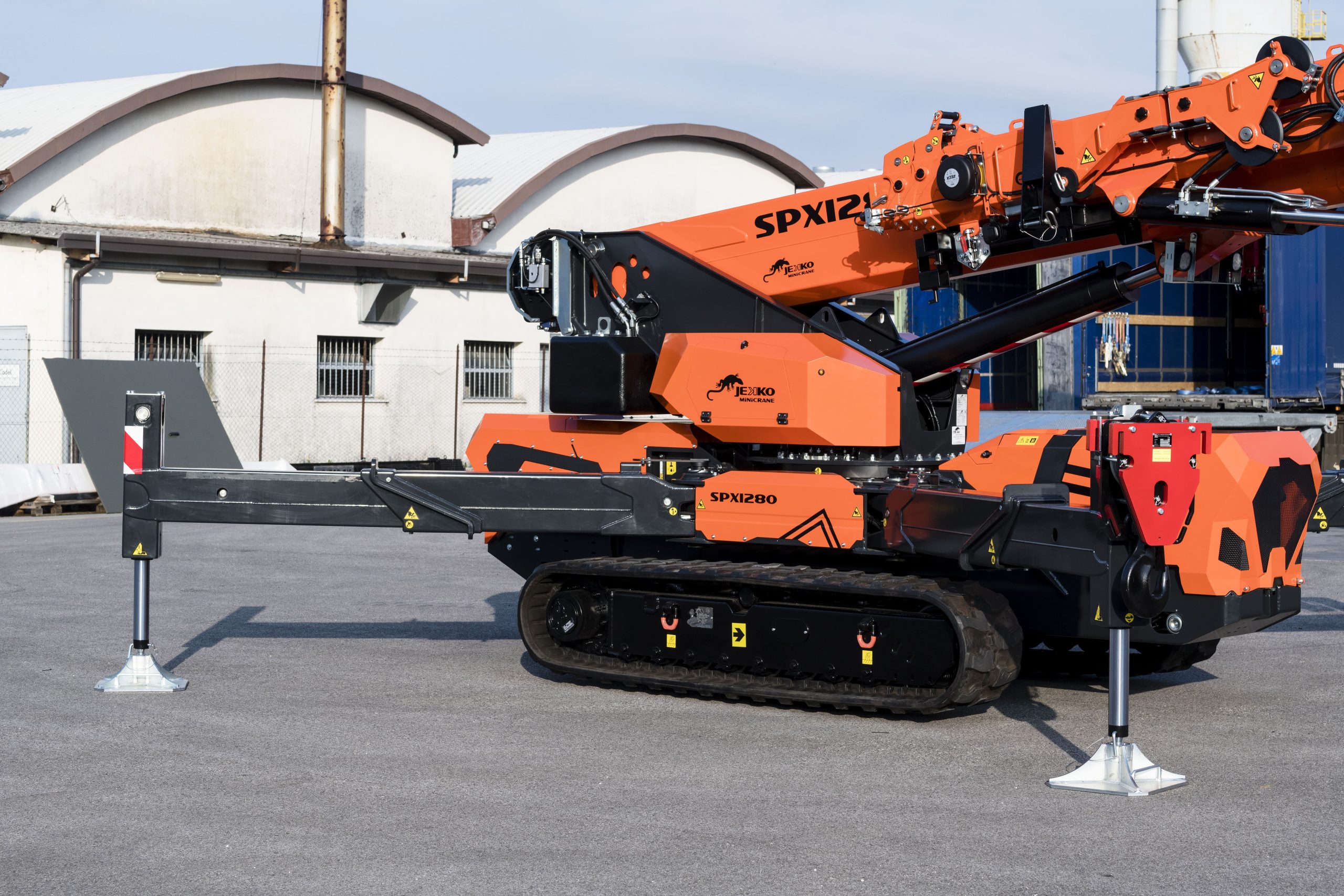

Extendable Tracks
Extendable Tracks

Independent extendable tracks to increase steering and 360° pick & carry

Power Pack
Power Pack

External three-phase power pack

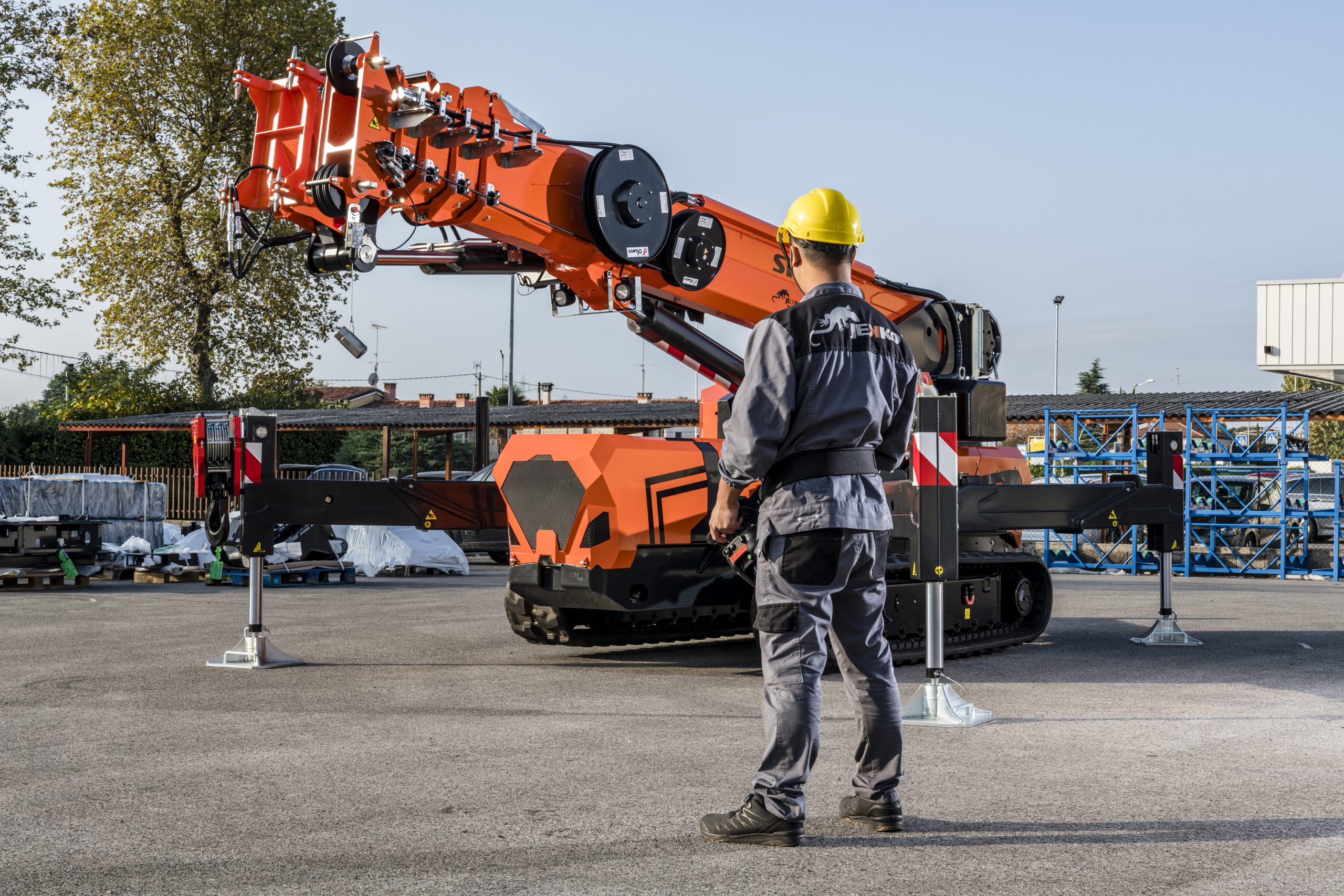

7 Radio Remote Control Radio Remote Control

- Large display
- Proportional radio remote control with two batteries
- Crane and crawler control

8 Continuous 360° rotation Continuous 360° rotation
9 Electronic LMI Electronic LMI

- Automatic stability control
- Plug & Play
- Diagnostic troubleshooting
- Friendly display with all the information
- Full safety respect EN13000

Virtual Wall
Virtual Wall

Anti-collision system with acquisition of the working area

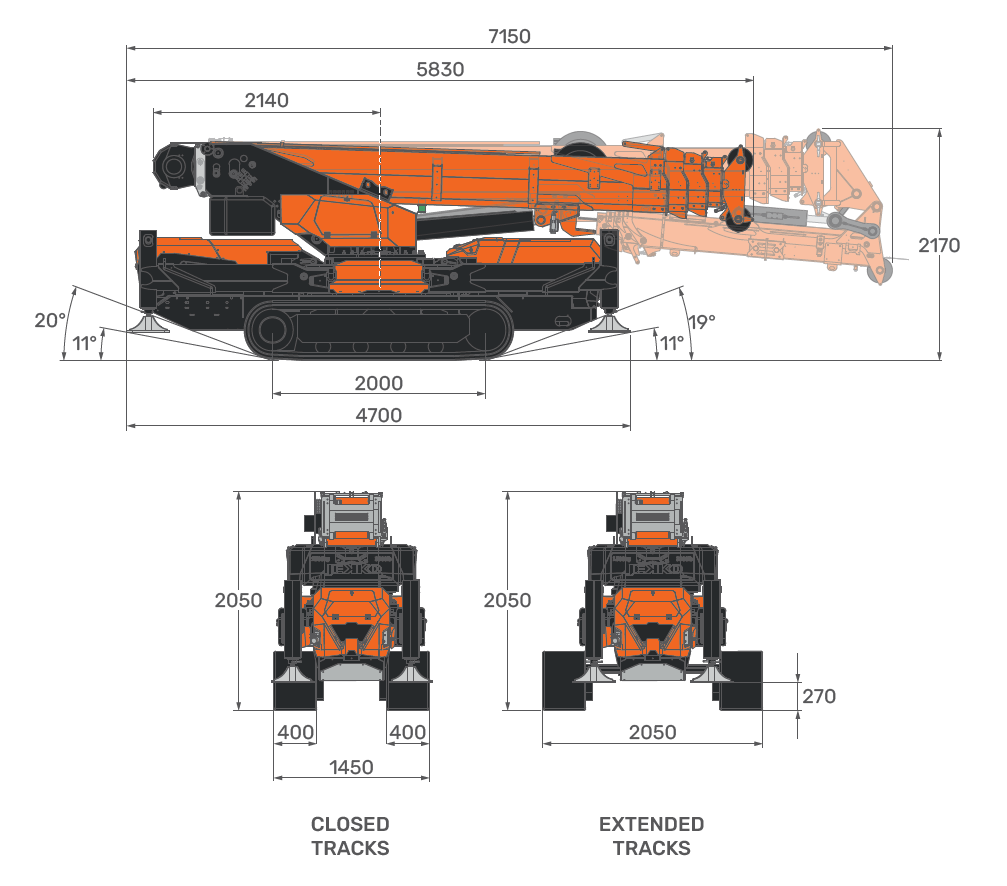

Dimensions 5730 x 1450 x 2040 mm
Stabilization Area 4600 x 4600 mm
Weight kg
Crane SPX1280 7000
Counterweight 1500
Hookblock / Capacity 8T-D10 110
Jib JIB3500GX 70
JIB1501.3HL 680
JIB1501.1FL 270
JIB303GR.1FL 250

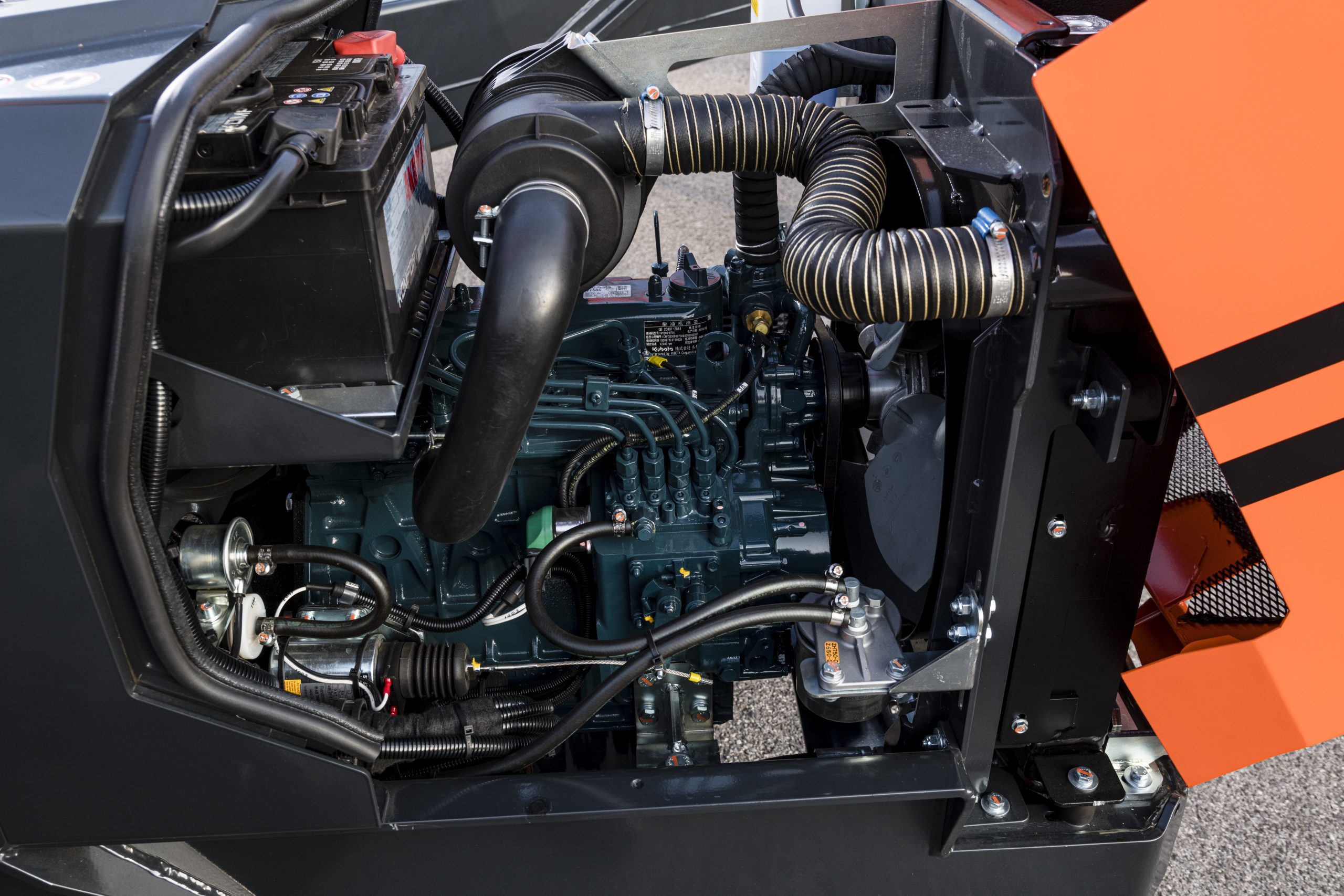

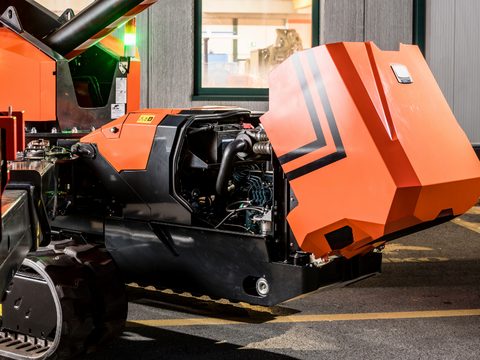

Engine (Diesel & Battery)
Engine KUBOTA V1505-E4B
Diesel Fuel Yes
Liquid Cooling Yes
Power 18,5 kW                                   25,0 Hp
Other Information
Main Winch 1500 kg                                       125 m – Ø 10 mm                         63,8-115,1 m/min
Max Outrigger Load 6800 kg
Max Track Load 0,72 kg/cm2
Travel Speed 1,5/3,0 km/h
Gradeability 20°
Extendable Tracks 1450-2050 mm

Standard utstyr

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines


1500 kg Capacity - 125 m Length - Ø 10 mm

Anti Two Block (A2B)

This switch prevents the hook from blocking or from being pulled against the boom end.

Crane-Carrier Interlock (CCI)

This system interlocks the functions of the crane and of the carrier.

Diagnostic Trouble Code (DTC)

Onboard diagnostic system for troubleshooting

Extendable Tracks (EXT)

Horizontally (SPX1040, SPX1275, SPK60) or 45° (SPB209, SPX312-424) extending tracks

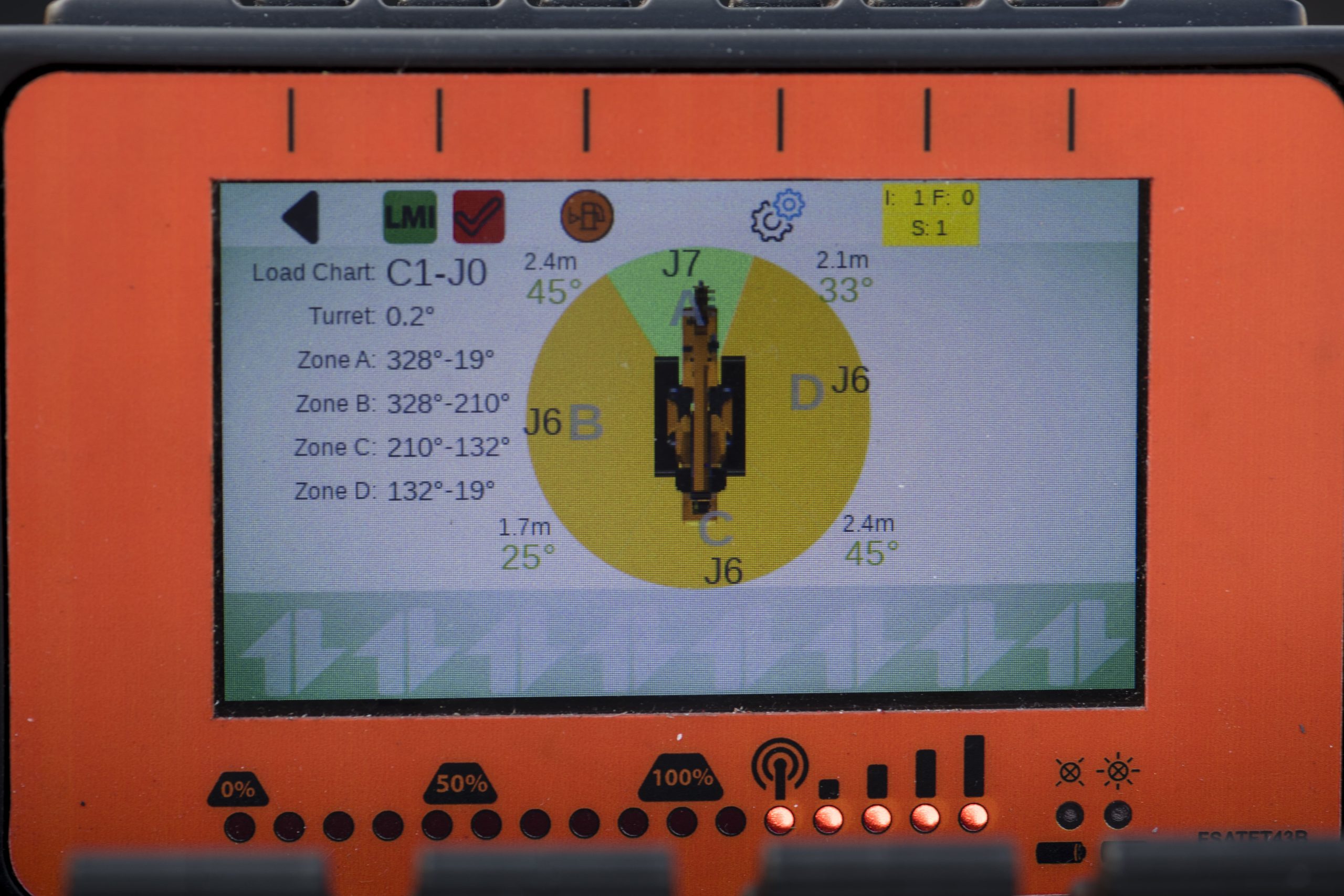

Geometrical Sability Control (GSC)

Geometrical Stability Control (GSC) shows the position of each single outrigger and operating sector.

Load Moment Indicator (LMI)

The LMI prevents overload or tipping of the machine.

Pick & Carry (P&C)

The machine can move on its tracks while the load is lifted up.

Virtual Walls (VW)

Automatic setting of ‘virtual walls’ to restrict the working areas.

Two Speed Tracks (2ST)

Two Speed Winch (2SW)

Winch double speed.

Radio Control Display (RCD)

Display on the radio remote control showing the machinery  load information.

Single Line Hook

Hook for single line pull of the rope.

Transportation Anchor Points

Anchor points for handling and transport of the minicrane

Bubble Level

To check correct stabilization

LED Working Light

Light positioned on the boom for operation at nigh

Tower Lamp

Tower lights (green/yellow/red) that signal errors and dangers


The Jemmy software manages all the machine functions

Radio Remote Control + 2 batteries

Scanreco proportional multipurpose radio remote control with additional battery


SPX1280: Diesel Engine Kubota V1505-E3B - 26,2 kW - Diesel

Jib Hook or Winch Mode

Jib hook mode and winch mode are both possible.


All mini cranes Jekko can be customized depending on the industry for which they should be used.

Pulley Block

Pulley used to configure the different parts of line

Power Pack

400V or 220V additional electric motor (North America)

Runner Jib

Hook jib

Luffing Jib

Lattice boom with varied angles and manual extension

Winter Kit

The Winter Kit warms up some components for operation at low temperatures

Visual Angle Indicator (VAI)

Working angle indicator, compulsory for North America

Hydraulic Extra Functions

Hydraulic activation for hydraulic accessories such as jibs and manipulators. It is necessary to deliver oil to the machine boom end.

Personalized Colour

Customized paint colour, choice of engine housing/boom or complete crane.

Low Marking White Tracks

Low marking white tracks for indoor operation.


Software for remote assistance

Grabber Pipe Manipulator

With quick-coupling.

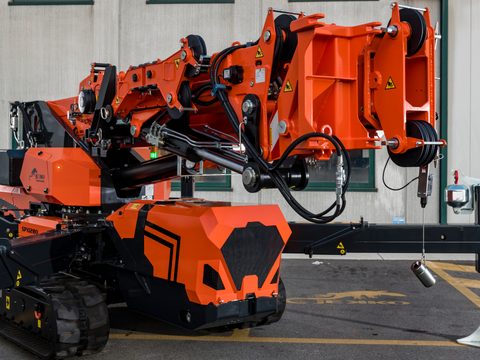

Hydraulic Jib

Built-in and radio remote controlled hydraulic jib.
