Anti Two Block (A2B)
This switch prevents the hook from blocking or from being pulled against the boom end.

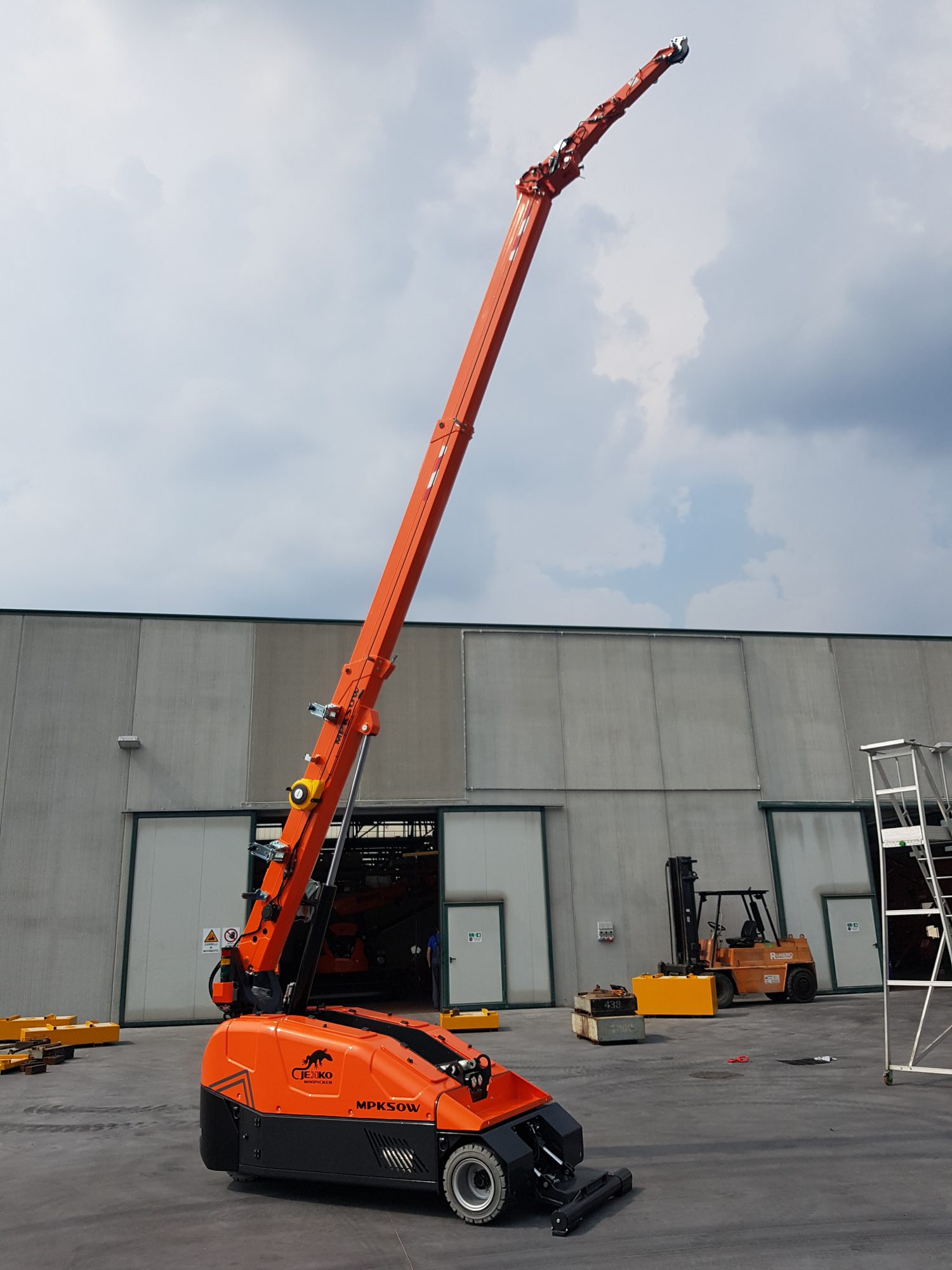

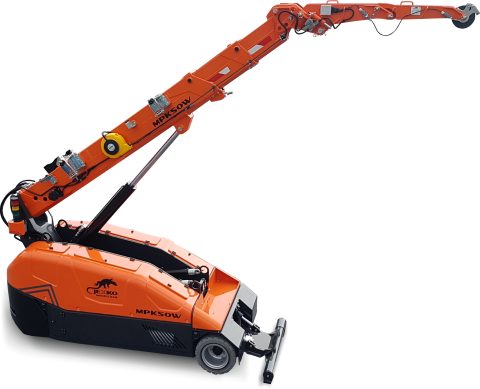

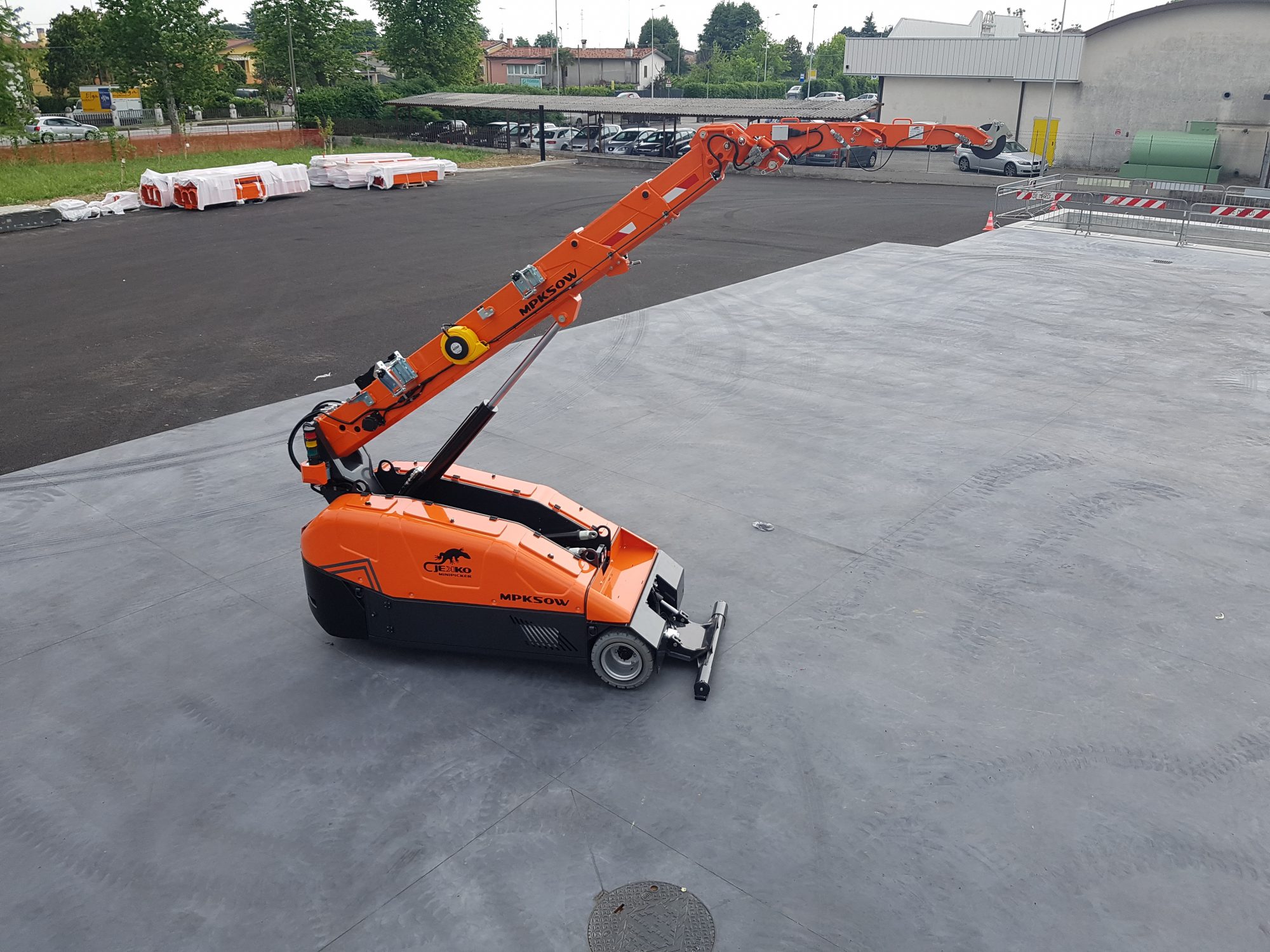

Minipicker
MPK50
5000 kg3050x1200x1750 mm9.5 m6.2 m
Ren innovasjon, komplett fjernstyring, elektrisk drift. Pick&Carry med 5 tonn løftekapasitet. Et patentert bom-roteringssystem og stabiliseringsstang i frontpartiet gjør denne kranen unik på markedet.
Features:
1
Modular Fly JIB
Modular Fly JIB
Two modular sections, with tilting head.
Pulley mode or hook mode
2
Hydraulic Winch
Hydraulic Winch
- 1.000 Kg capacity
- 60 mt wire rope
3

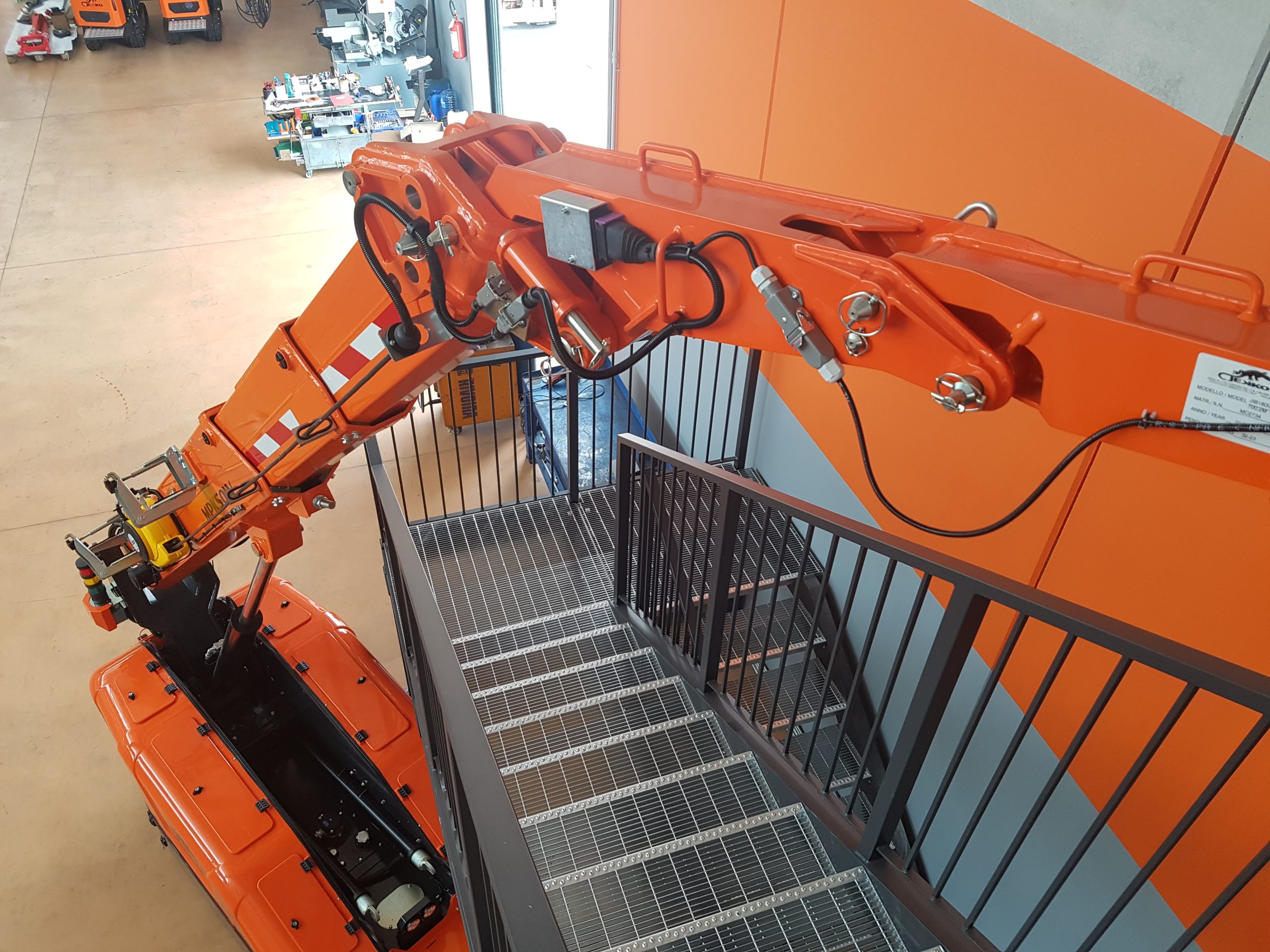

Boom Rotation
Boom Rotation
Innovative boom rotation system + 5° / - 5 °
4
Rechargable Batteries
Rechargable Batteries
5
Frontal Traction
Frontal Traction
Frontal hydraulic traction for a perfect grip, powerful in any condition
6

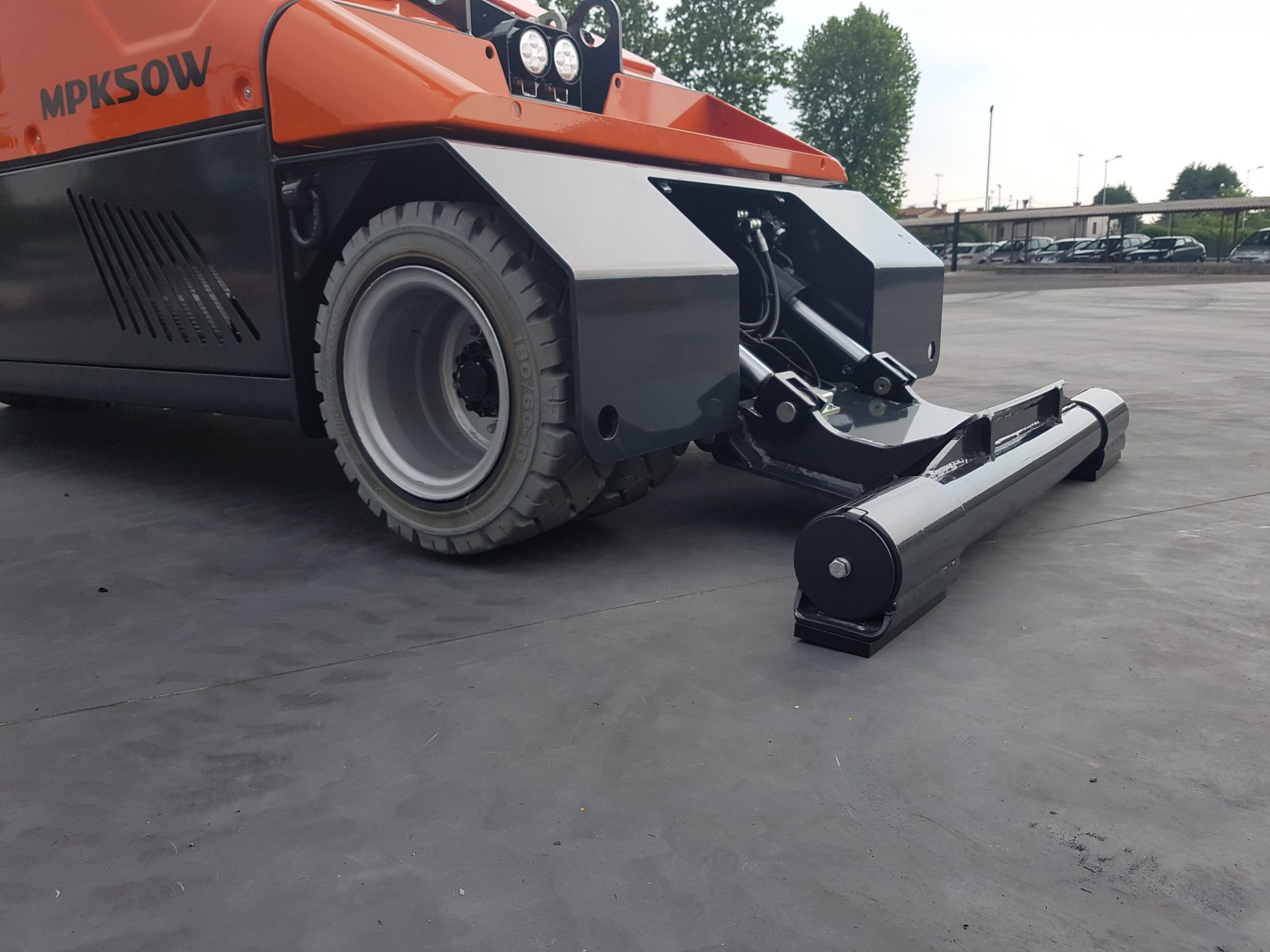

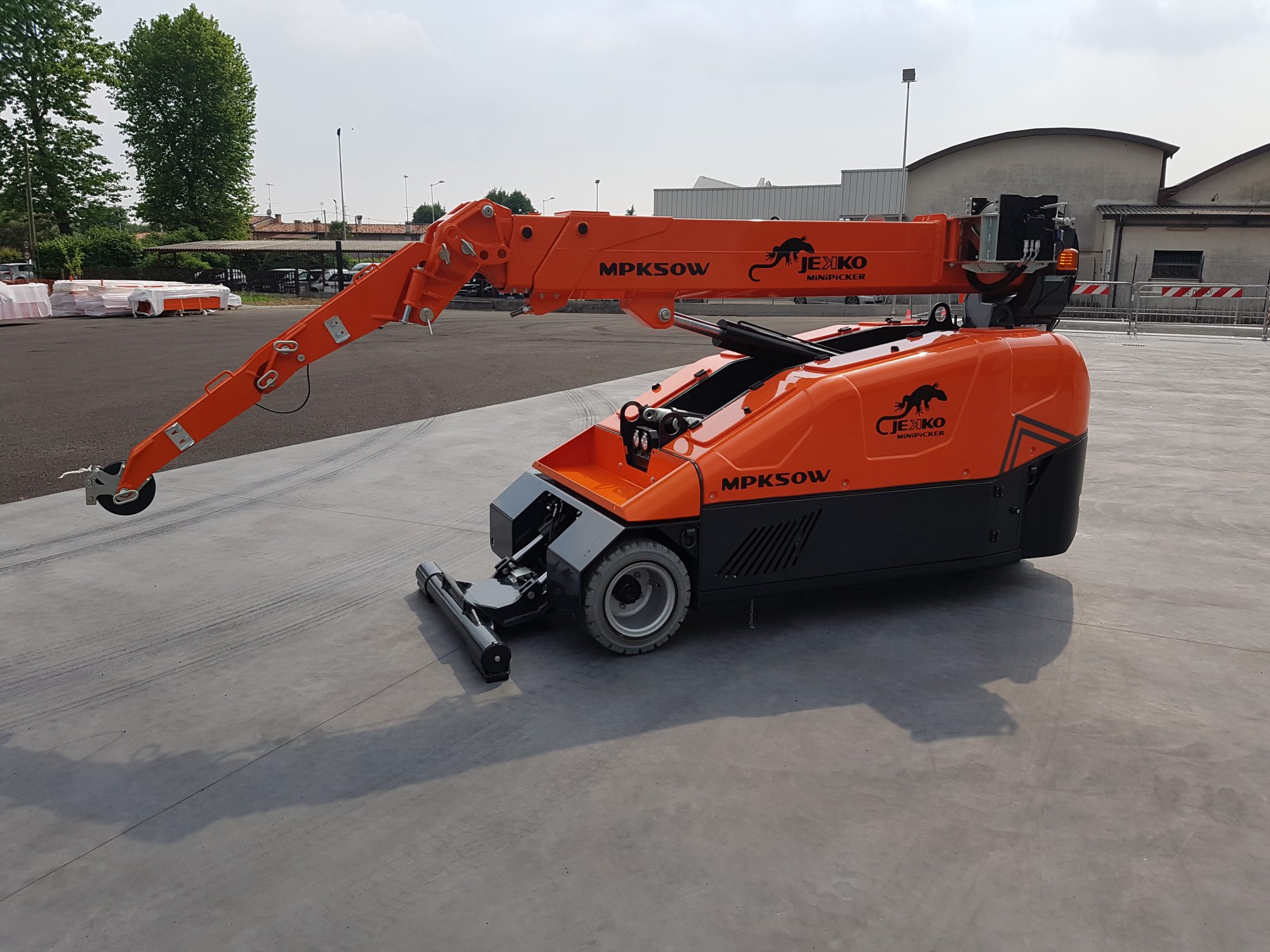

Frontal Stabilizer
Frontal Stabilizer
Increasing stability and lifting capacity
7
Electronic LMI
Electronic LMI
- Automatic stability control
- Plug & Play
- Diagnostic troubleshooting
- Friendly display with all the information
- Full safety respect EN13000
8

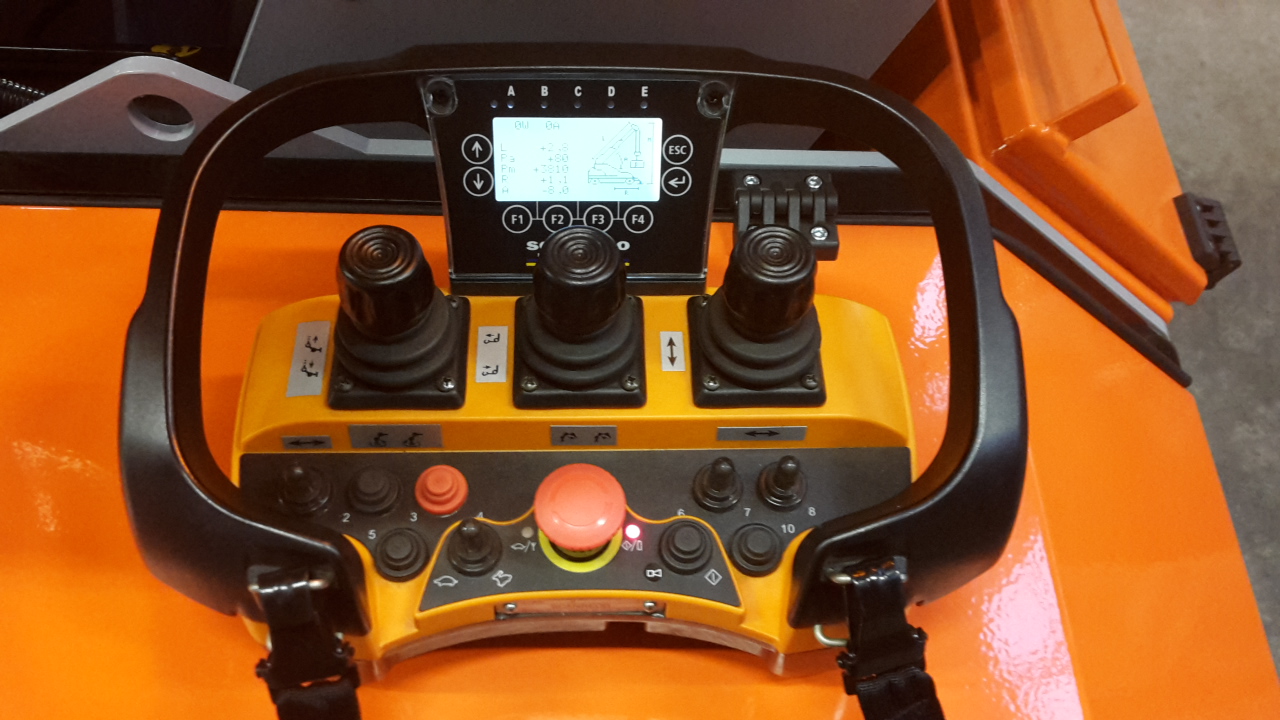

Radio Remote Control
Radio Remote Control
| MPK50 | ||

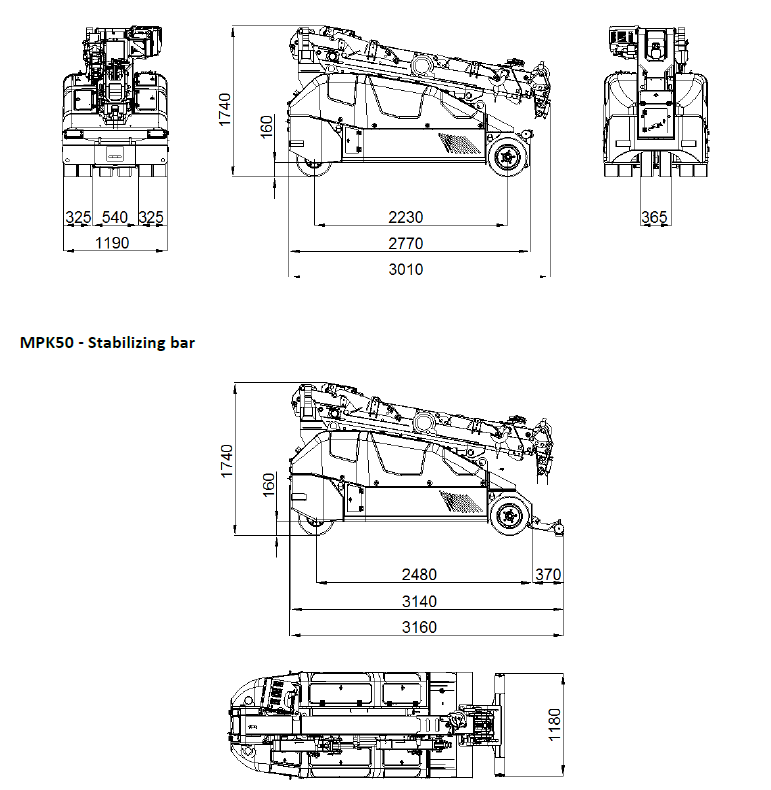

| Dimensions | 3050 x 1200 x 1750 mm | |
| Weight | Kg | |
| Minipicker | MPK50 | 3450 |
| Counterweight | 1000 | |
| Hookblock / Capacity | 5T-D8 | 10 |
| Jib | Module 1800 / 32kg | |
| Module 700 / 23 kg | ||
| Tot. 55 kg | ||
| Electrical System | 48V | |
| 620 Ah | ||
| Power | 12,0 kW | |
| 16,1 Hp | ||
| Main Winch | 1000 kg | |
| 60 m – Ø 8 mm | ||
| 20 m/min | ||
| Travel Speed | 4,0 km/h | |
| Gradeability | 20% | |
Standard utstyr
All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines
Bubble Level
To check correct stabilization
Diagnostic Trouble Code (DTC)
Onboard diagnostic system for troubleshooting
Frontal Stabilizer
LED Working Light
Light positioned on the boom for operation at nigh
Load Moment Indicator (LMI)
The LMI prevents overload or tipping of the machine.

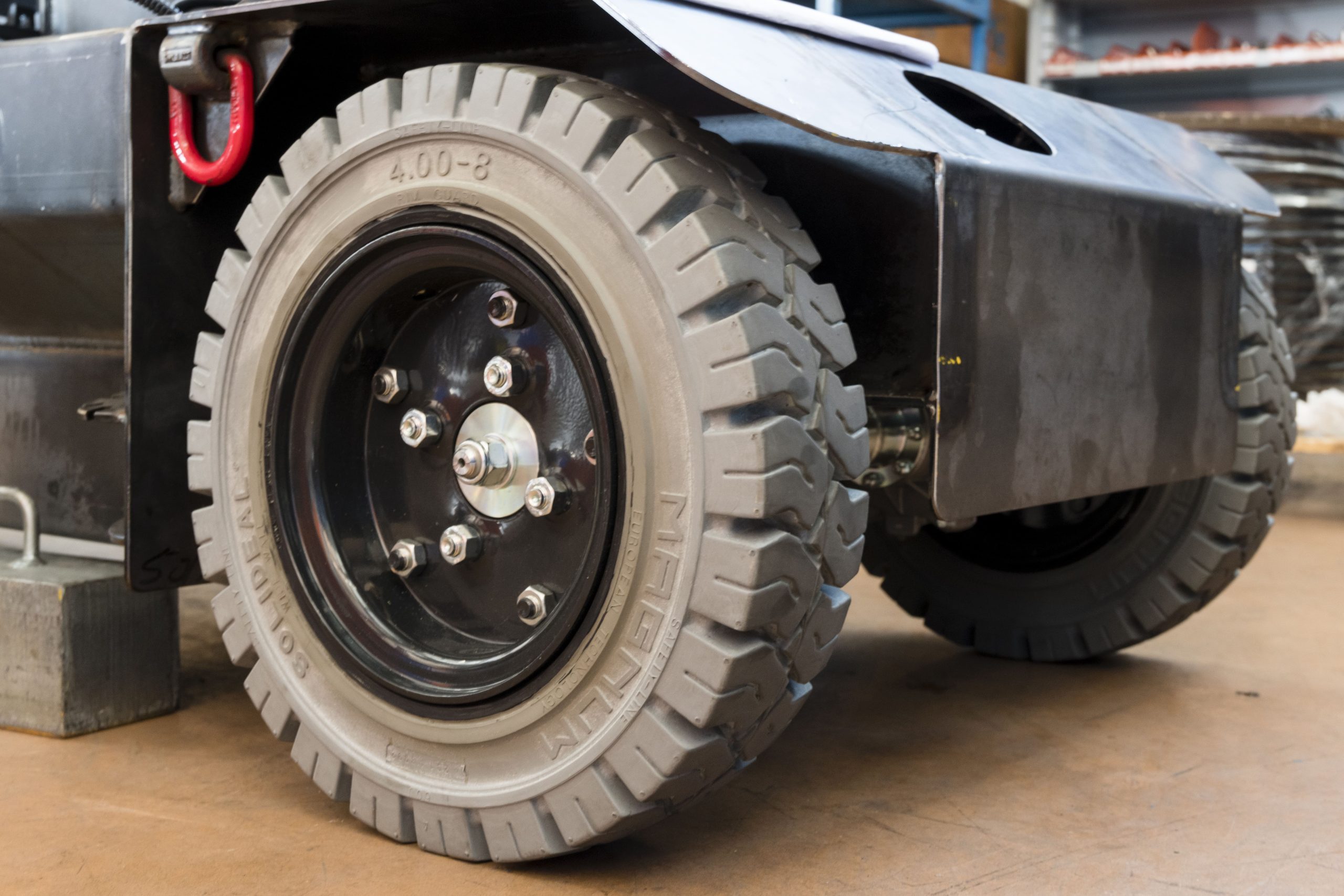

Low Marking Tires
White rubber wheels leaving no traces
Pick & Carry (P&C)
The machine can move on its tracks while the load is lifted up.
Radio Remote Control + 2 batteries
Scanreco proportional multipurpose radio remote control with additional battery
Single Line Hook
Hook for single line pull of the rope.
Software
The Jemmy software manages all the machine functions
Tower Lamp
Tower lights (green/yellow/red) that signal errors and dangers
Transportation Anchor Points
Anchor points for handling and transport of the minicrane
Options
All mini cranes Jekko can be customized depending on the industry for which they should be used.
Battery Charger
Integrated battery charger to keep the machine always in charge
Personalized Colour
Customized paint colour, choice of engine housing/boom or complete crane.
Pulley Block
Pulley used to configure the different parts of line
Mechanical Jib
Mechanical jib with varied angles and manual extension
Winch with 125m rope
Optional winch with wire up to 125 metres.
