Beltegående minikraner med knekkbom

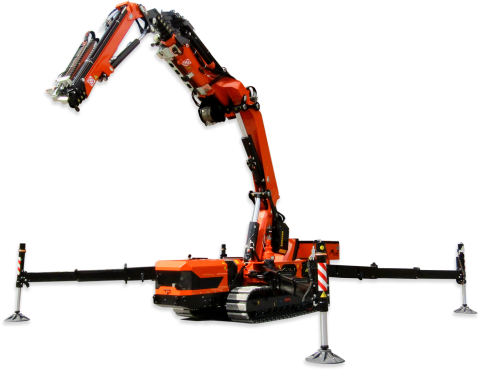

JF365

11500 kg5450 x 1800 x 2660 mm30 m30 m

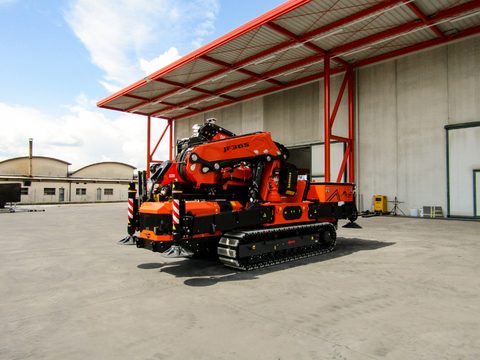

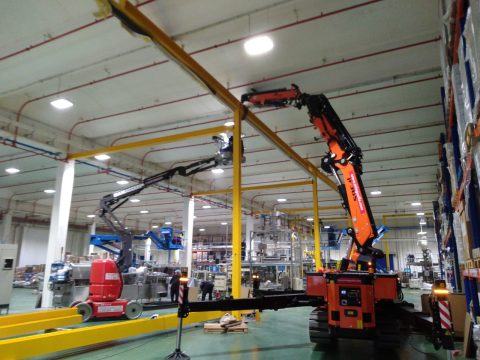

En lastebilkran med knekkbom med beltedrift. Denne modellen viser fremtiden for beltegående kraner. JF365 har en fast base med løftekapasitet 3 tonn. Den har samme muligheter for utstyr som JF545: Proporsjonal radio-styring, hydraulisk aktivering av utstyr, stabilitetskontroll med ubegrensede muligheter for stabilisering av krana, en mindre og lettere jibb som gjør det mulig å koble til en mannskapskurv. JF365 har en rekke bruksområder: spesielle løfteprosjekter, monteringsprosjekter med begrenset plass (bjelker, tak, glass, luftkjøleanlegg, etc). Eller i industrianlegg for service og vedlikehold.

JF365
Dimensions 5450 x 1800 x 2660 mm

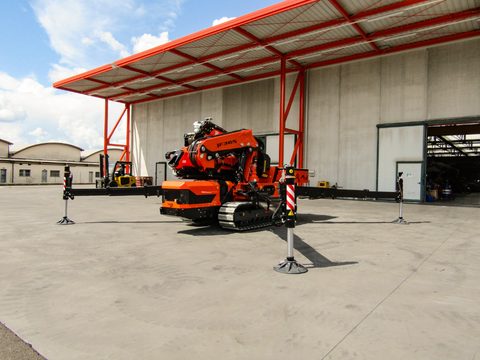

Stabilization Area 6700 x 6700 mm
Weight kg
Crane JF365 12300
Counterweight /
Hookblock / Capacity 11500
Jib JIBL214 700
Basket 200
Engine KUBOTA V3307-CR-TE4B
Diesel Fuel Yes
Power 55,4kW – 74 Hp
Main Winch 2600 kg                                       60 m – Ø 12 mm                       36.5-47 m/min
Max Outrigger Load 8500 kg
Max Track Load 0,65 kg/cm2
Travel Speed  2,5 km/h
Gradeability  20°

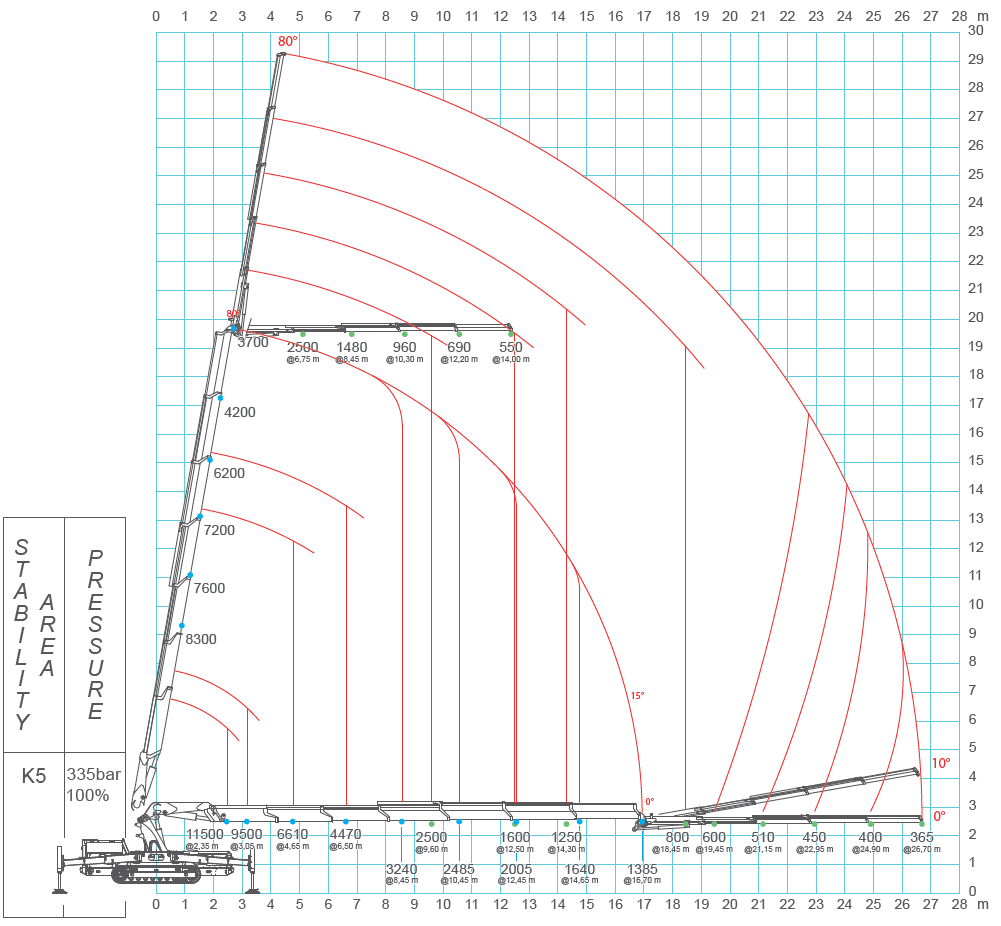

jekko-jf-365-load-chart

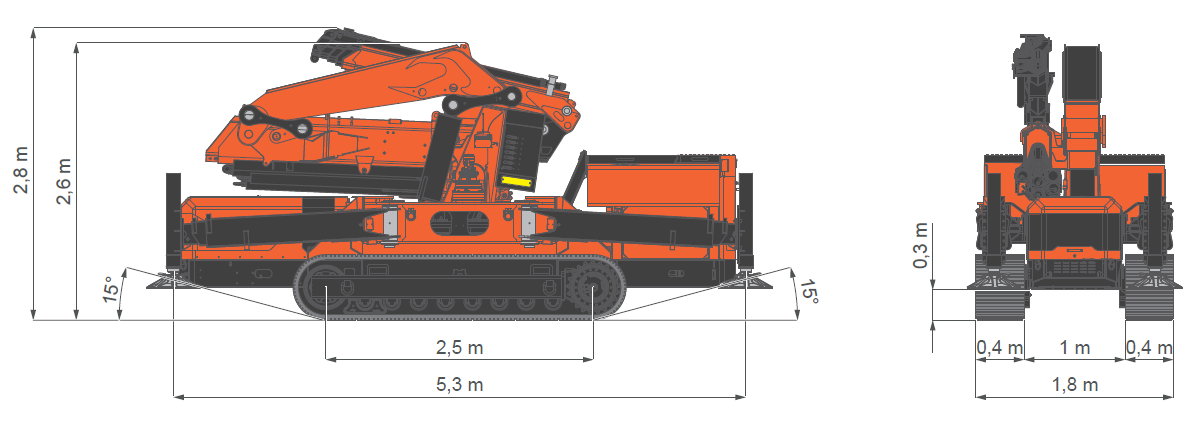

jekko-jf-365-dimensions

Standard utstyr

All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

Diesel Electronic Engine

KUBOTA V3307-CR-TE4 TIER IV Stage 5 -TURBO 55.4Kw/74.3Hp

Rotation

Continuous rotation on slew ring

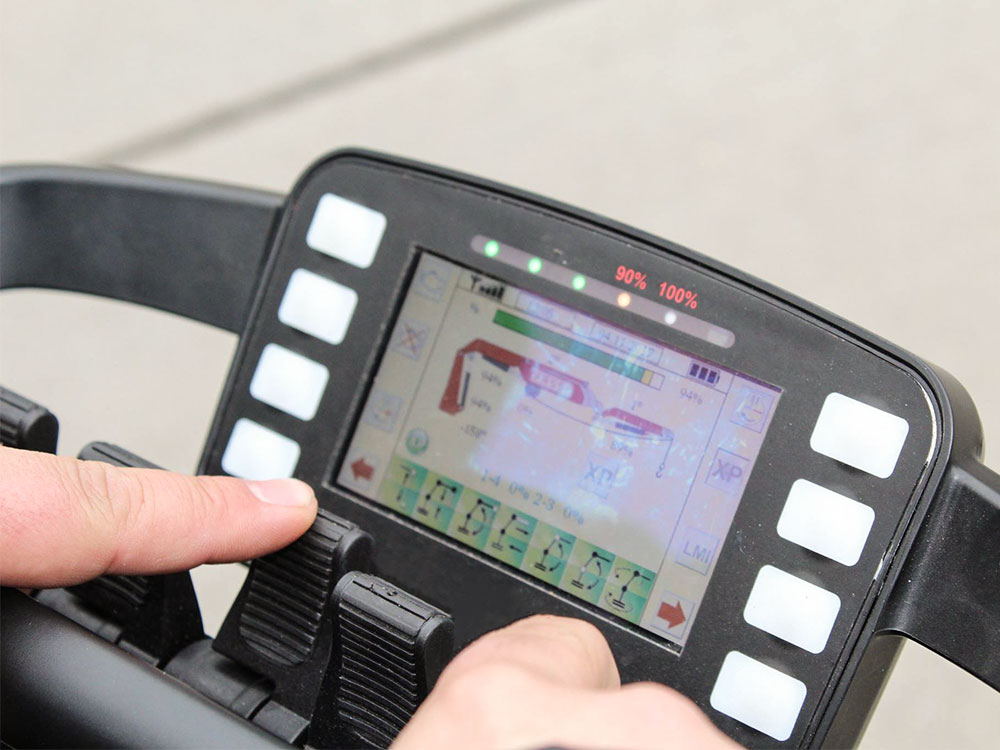

Radio Control Display (RCD)

Display on the radio remote control showing the machinery  load information.

Stability Control Indicator (SCI)

It shows the position of each outrigger.

Tool Box

Segnaposto

Double hydraulic engine on the slew ring

Segnaposto

Double linkage on the boom articulations

Segnaposto

Set up for Jib Installation

Mechanical, hydraulic and electric
Segnaposto

Set up for Winch Installation

Mechanical, hydraulic and electric
Segnaposto

Steel Tracks

Options

All mini cranes Jekko can be customized depending on the industry for which they should be used.

Power Pack

400V or 220V additional electric motor (North America)

Low Marking White Track pads

Low Marking White Track pads

Towing winch

Winch 2 ton

Winch V20, 2 ton with pulley block for 3 lines, 60m rope

Towing Winch Activation

Hydraulic activations for towing winch

Hook Leveling System for Winch

On main boom and jib.

Manual extension

Manual extension for main boom or jib

Searcher hook kit

Searcher hook kit for main boom or jib

Hydraulic Luffing Jib

Hydraulic luffing jib with link, 3.000 kg SWL, 6 hydraulic extensions

Personalized Colour

Customized paint colour, choice of engine housing/boom or complete crane.

J-Connect

Software for remote assistance

Mobile Elevated Work Platform Certification on Man-Basket

Man Basket
