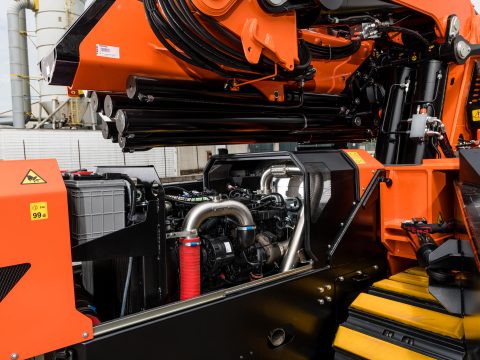

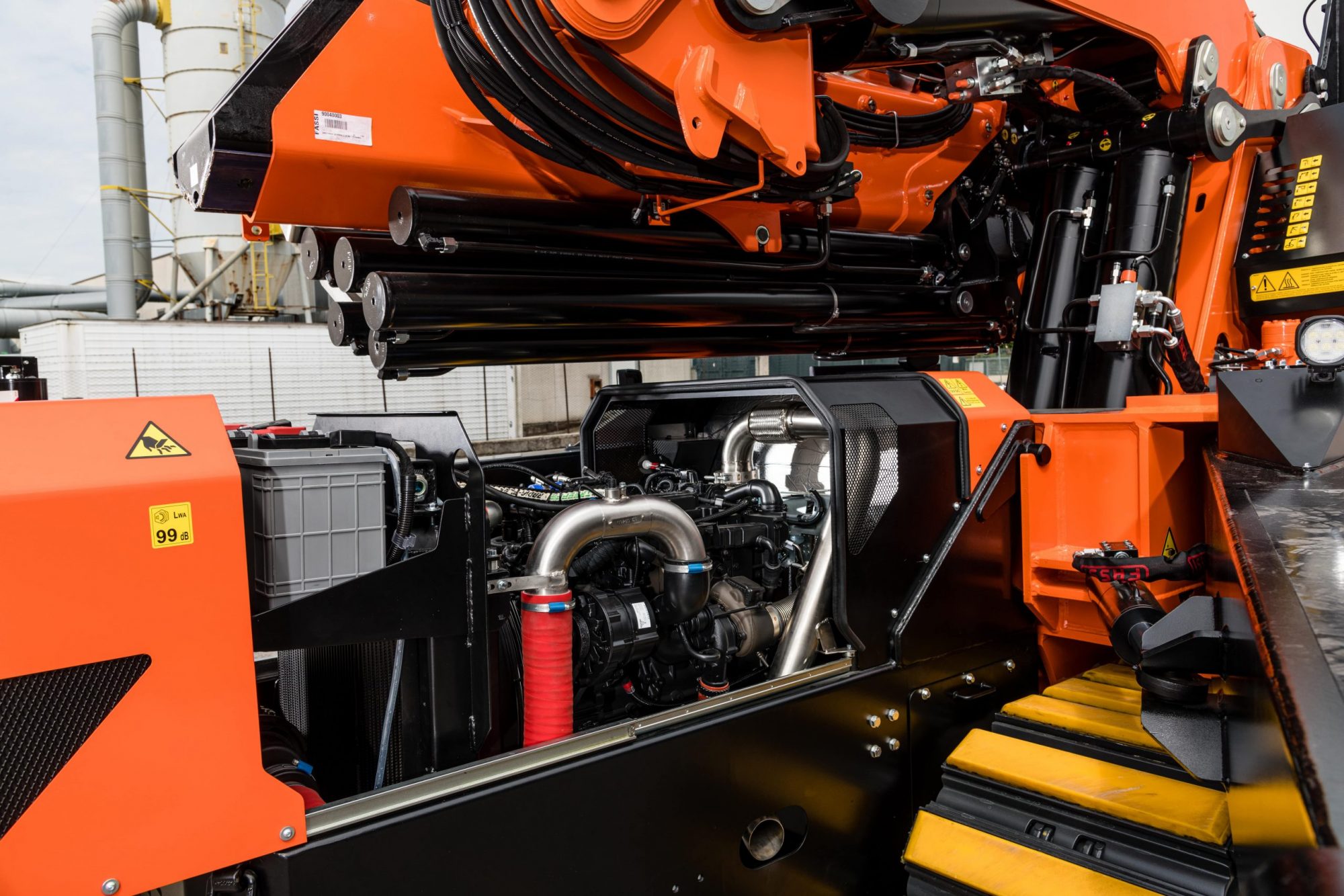

Diesel Electronic Engine
KUBOTA V3307-CR-TE4 TIER IV Stage 5 -TURBO 55.4Kw/74.3Hp
Beltegående minikraner med knekkbom

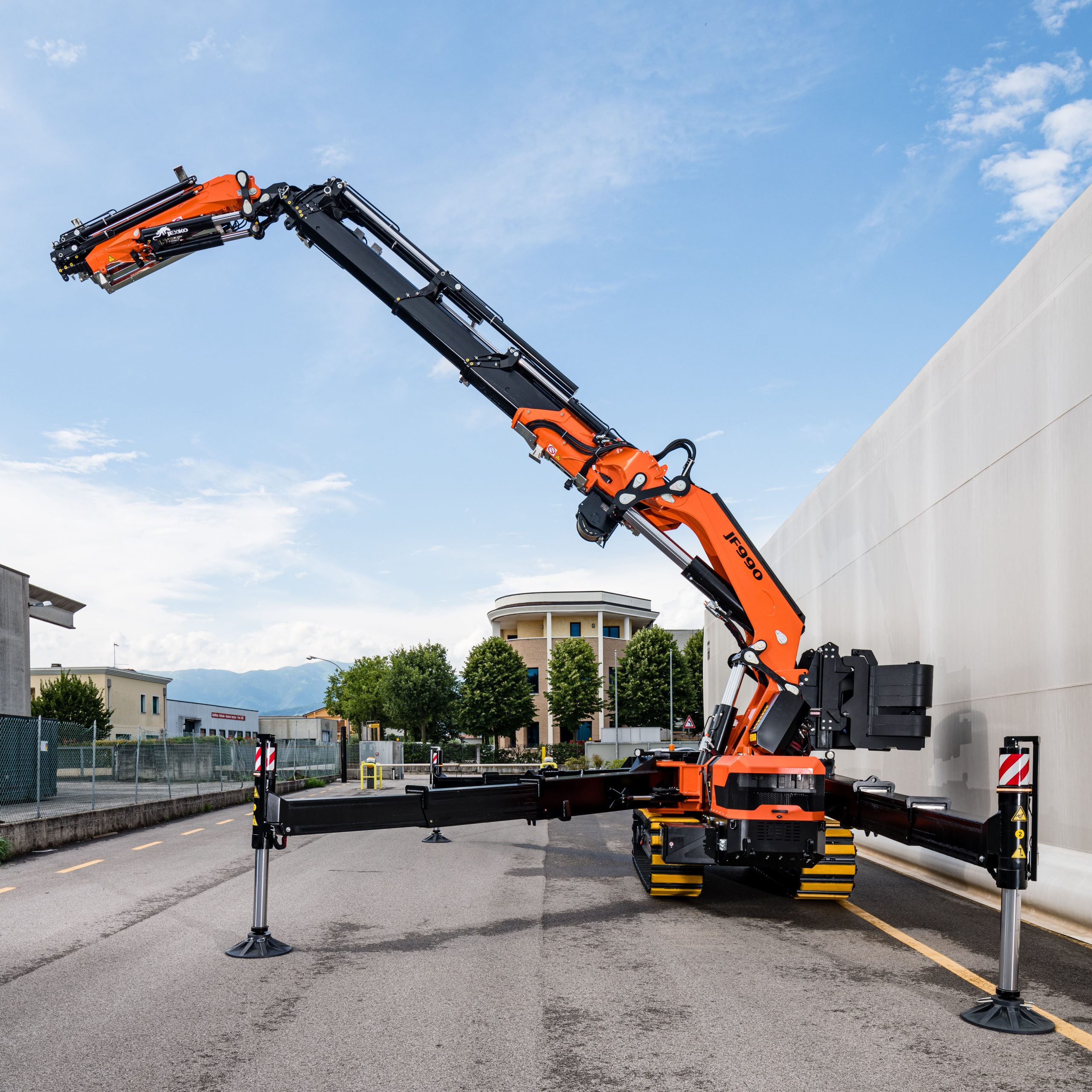

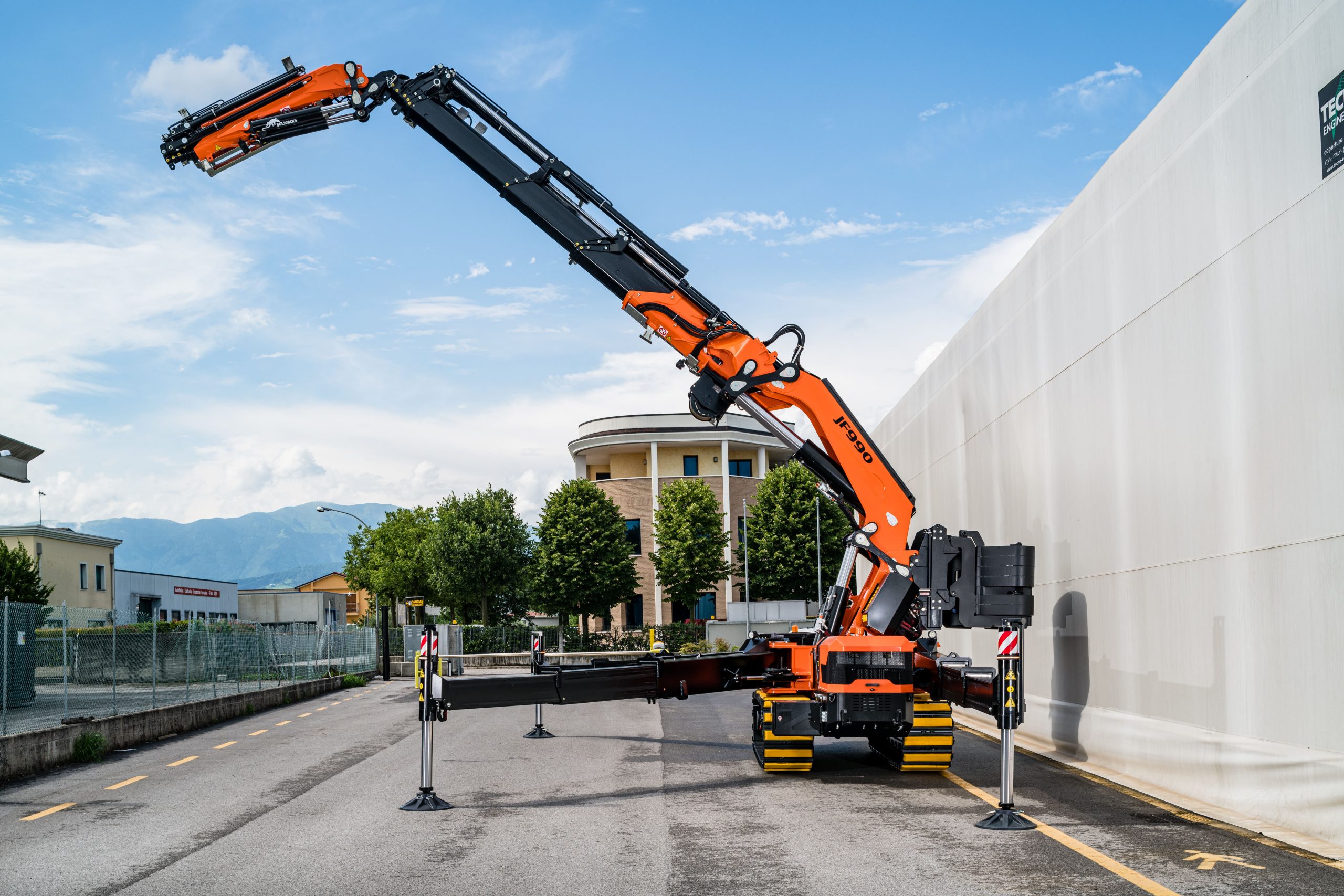

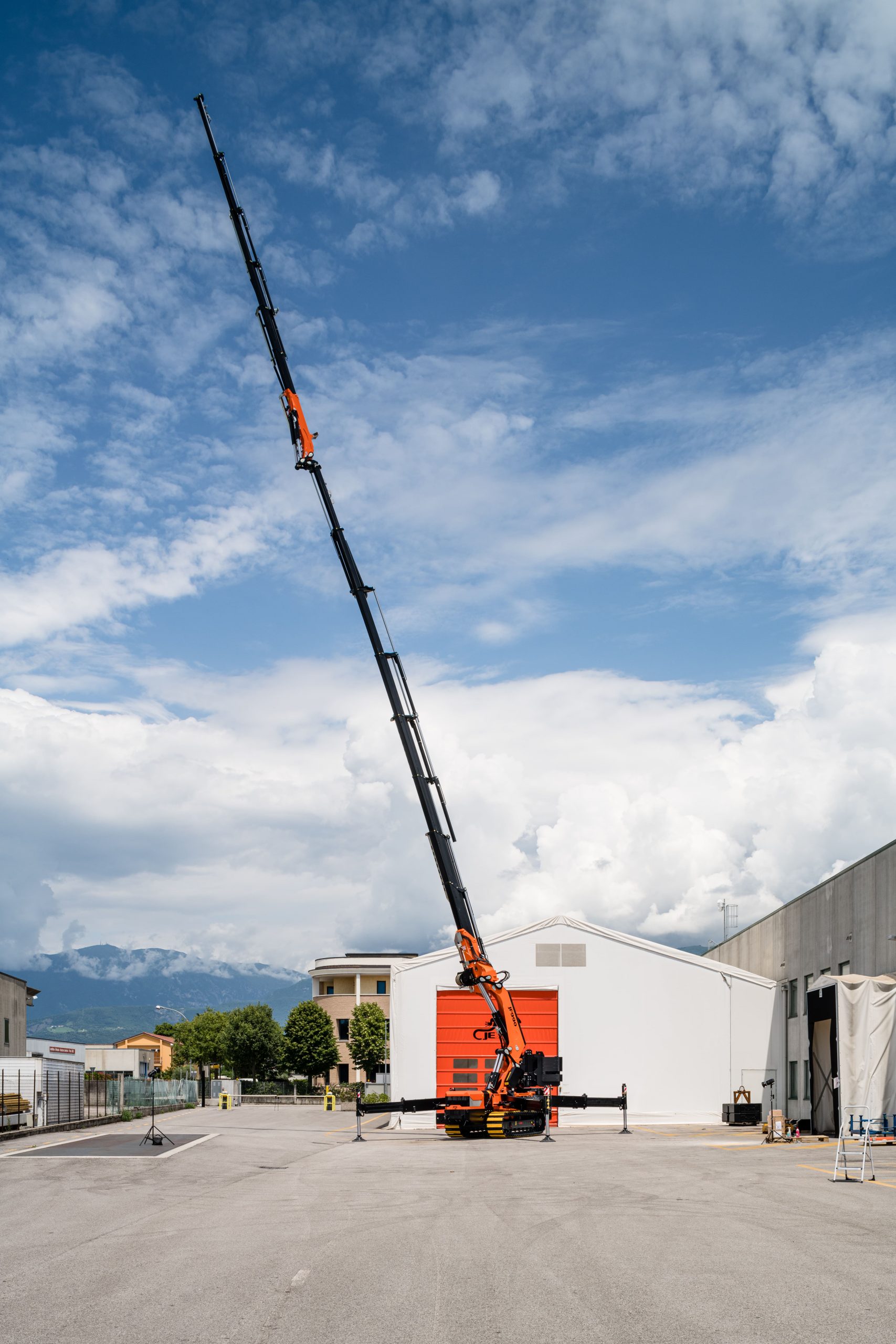

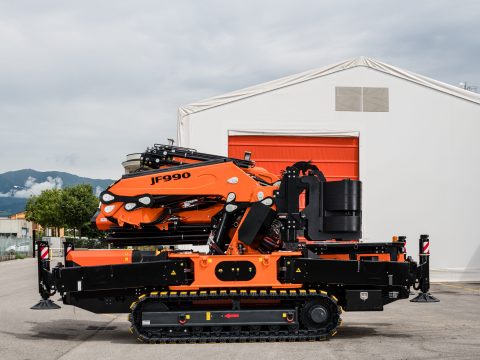

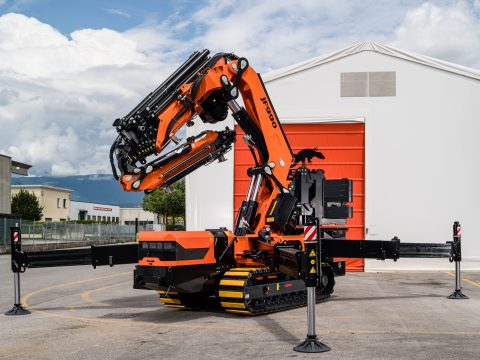

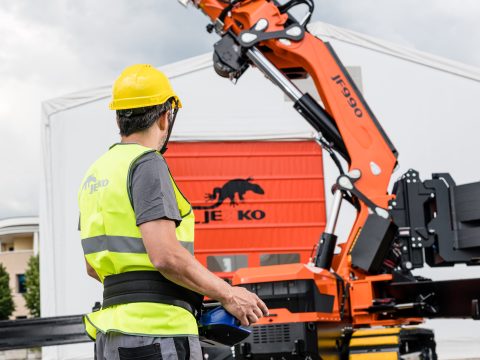

JF990
21500 kg6750 x 2140 x 3110 mm41 m38 m
Denne modellen er den nyeste og kraftigste i JF-serien. Egner spesielt egnet for bygg og anlegg hvor det kreves betydelig løftekapasitet. F.eks montering av store elementer for ferdighus.
| JF990 | ||

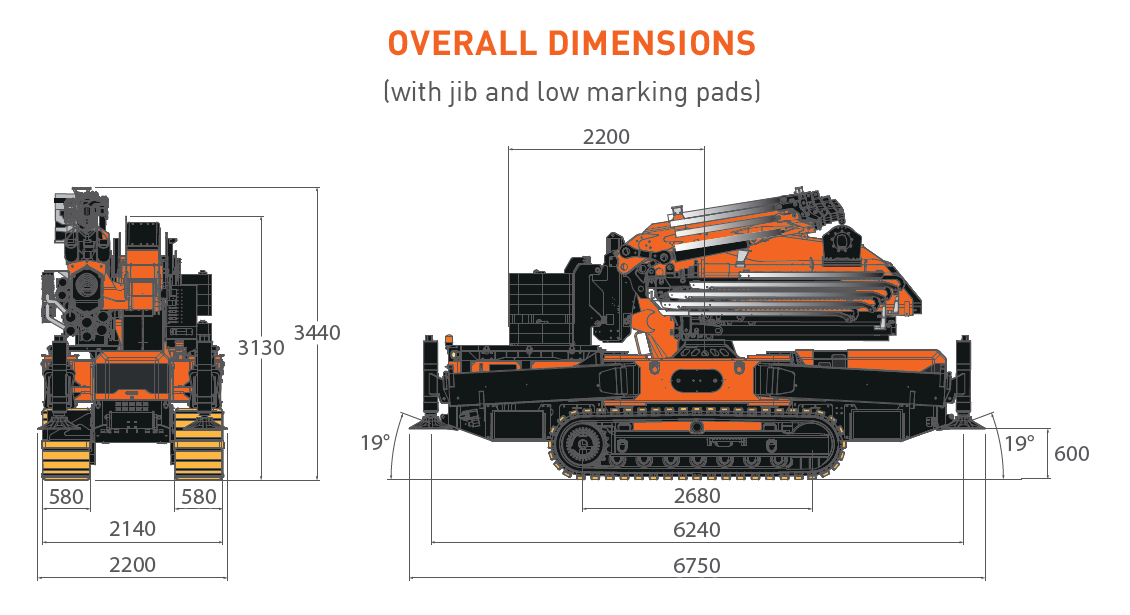

| Dimensions | 6,75 x 2,14 x 3,11 m | |
| Stabilization Area | 8,5 x 8,5 mm | |
| Weight | kg | |
| Crane | JF990 | 20000 |
| Counterweight | 3500 + 3000 | |
| Jib | JIBL616 | 1680 |
| Basket | 200 | |

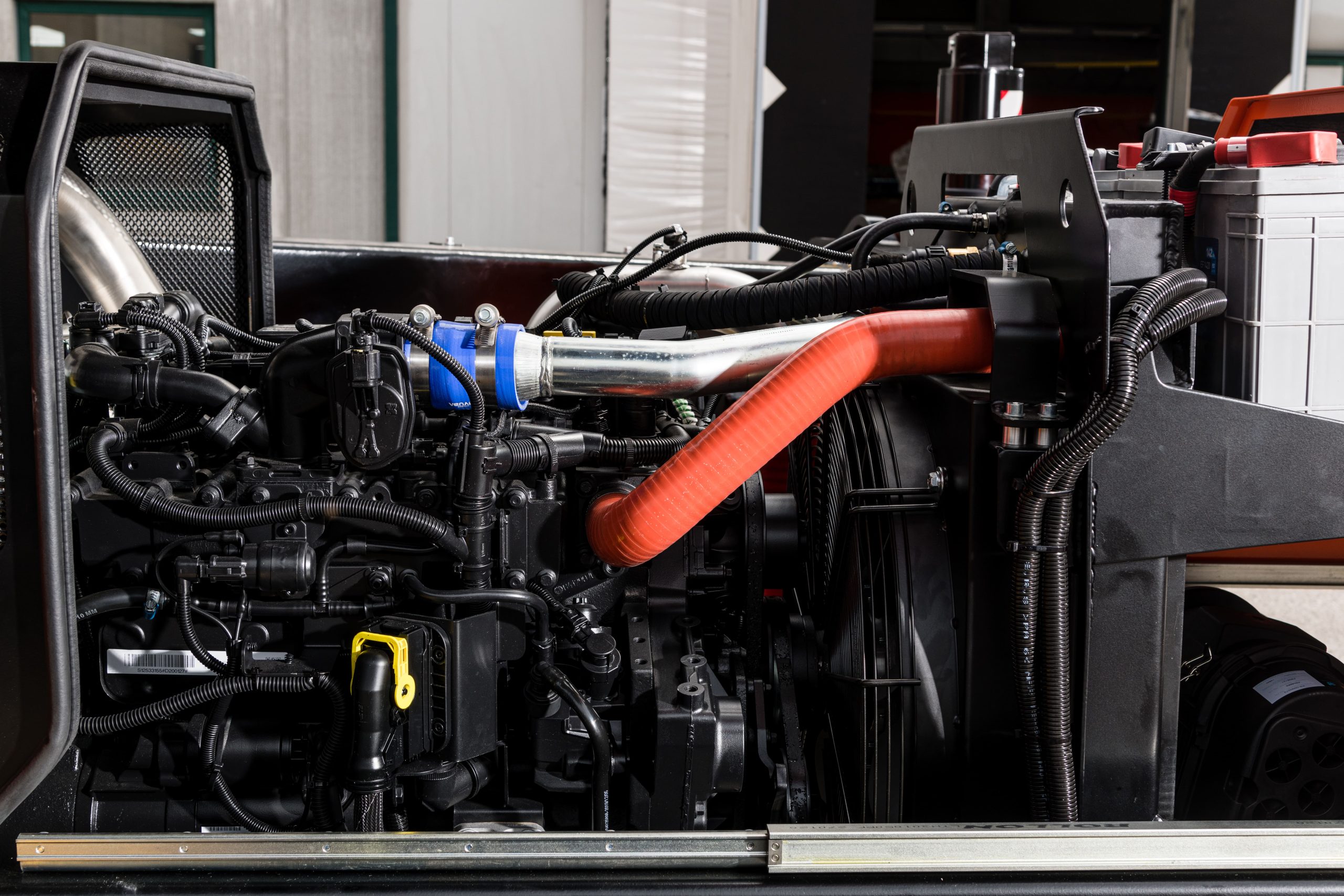

| Engine | KUBOTA V380-CR-T(I)E4 | |
| Diesel Fuel | Yes | |
| Power | 85kW – 110Hp | |
| Max Outrigger Load | 18000 kg | |
| Max Track Load | 0,82 kg/cm2 | |
| Travel Speed | 2,5 km/h | |
| Gradeability | 20° | |
Standard utstyr
All basic equipment of mini cranes Jekko, From applications to accessories placed on all machines

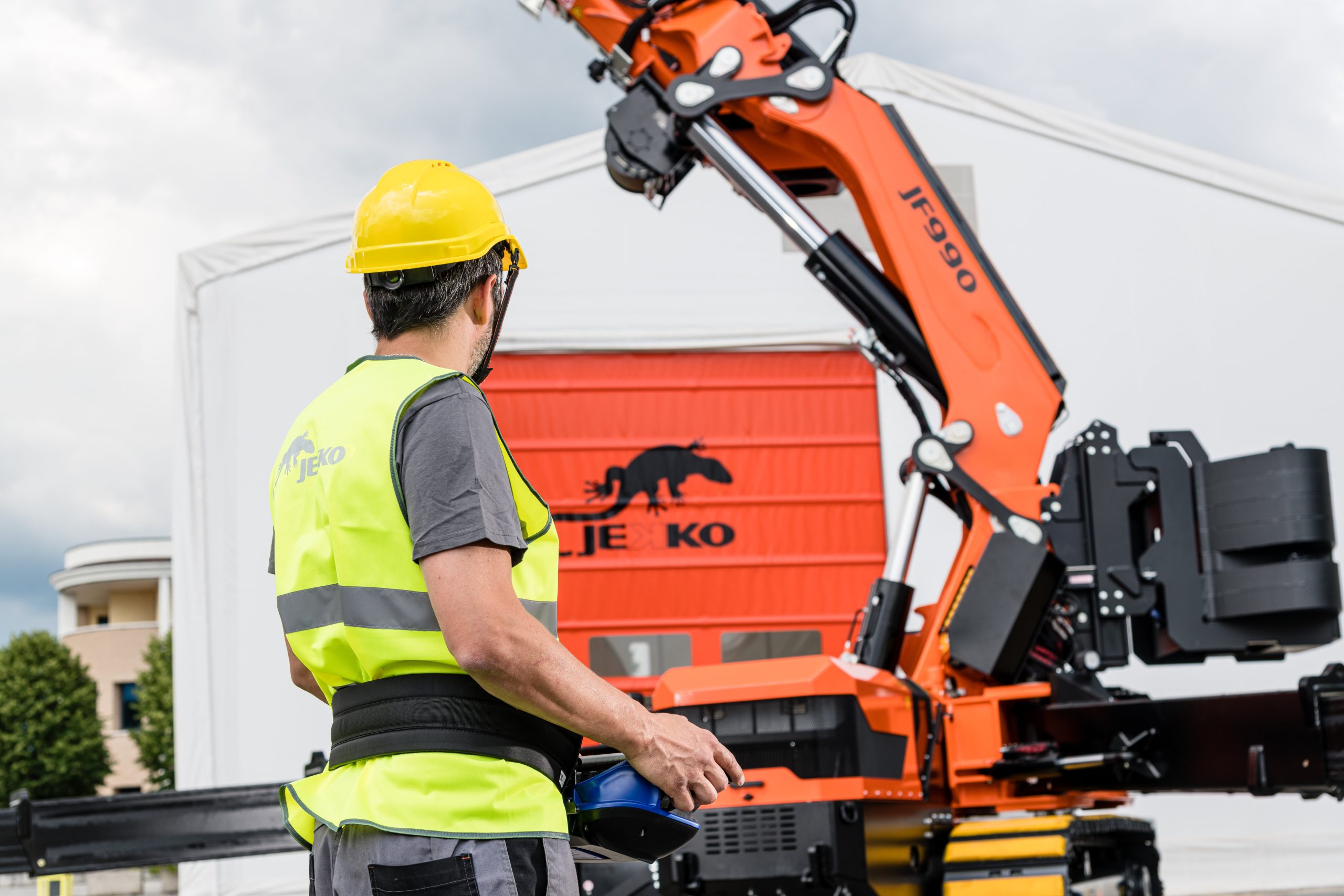

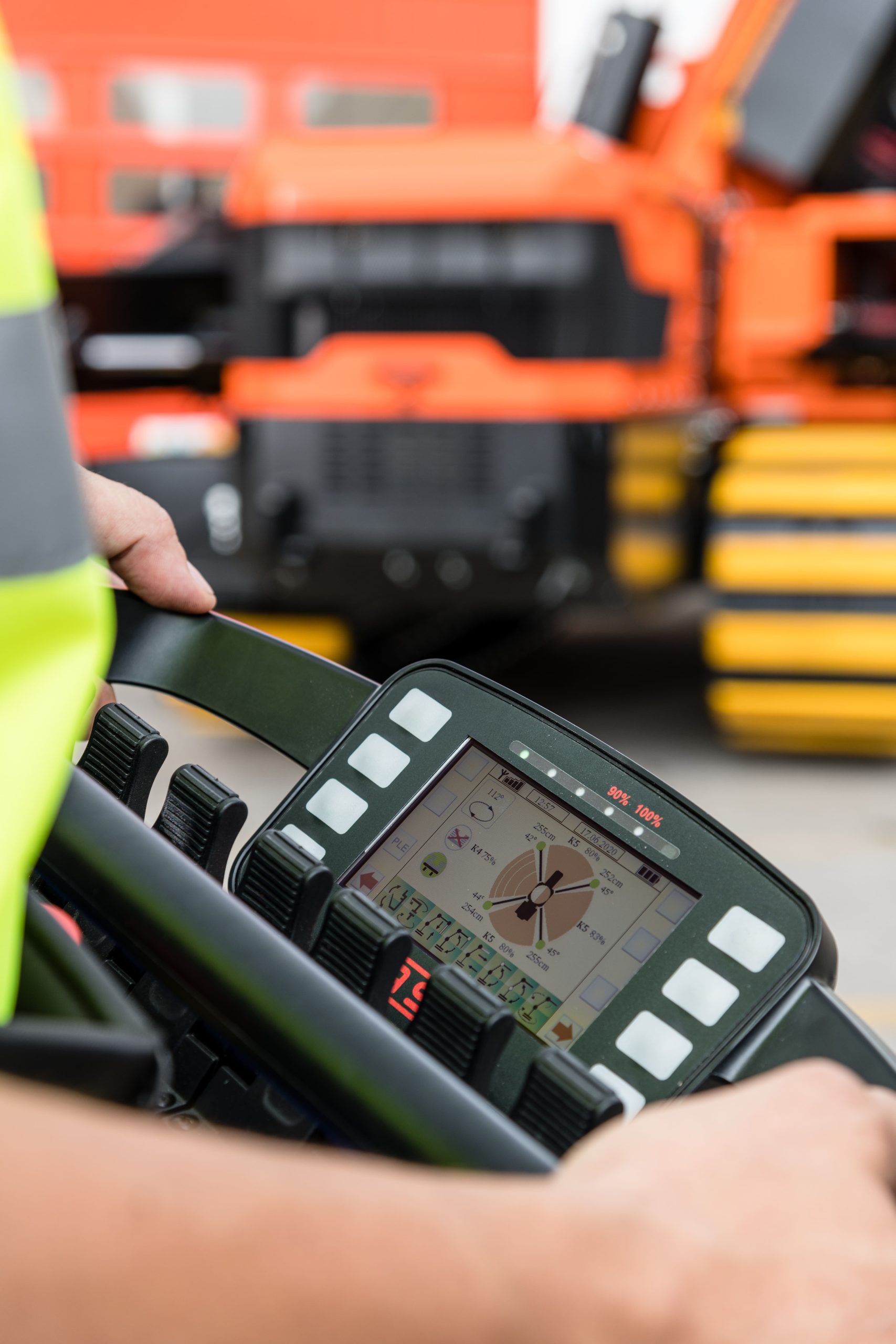

Radio Control Display (RCD)
Display on the radio remote control showing the machinery load information.
Counterweight
Counterweight 3.5 ton
Steel Tracks
Tool Box
Rotation
Continuous rotation on slew ring
Set up for Jib Installation
Mechanical, hydraulic and electric
Set up for Winch Installation
Mechanical, hydraulic and electric

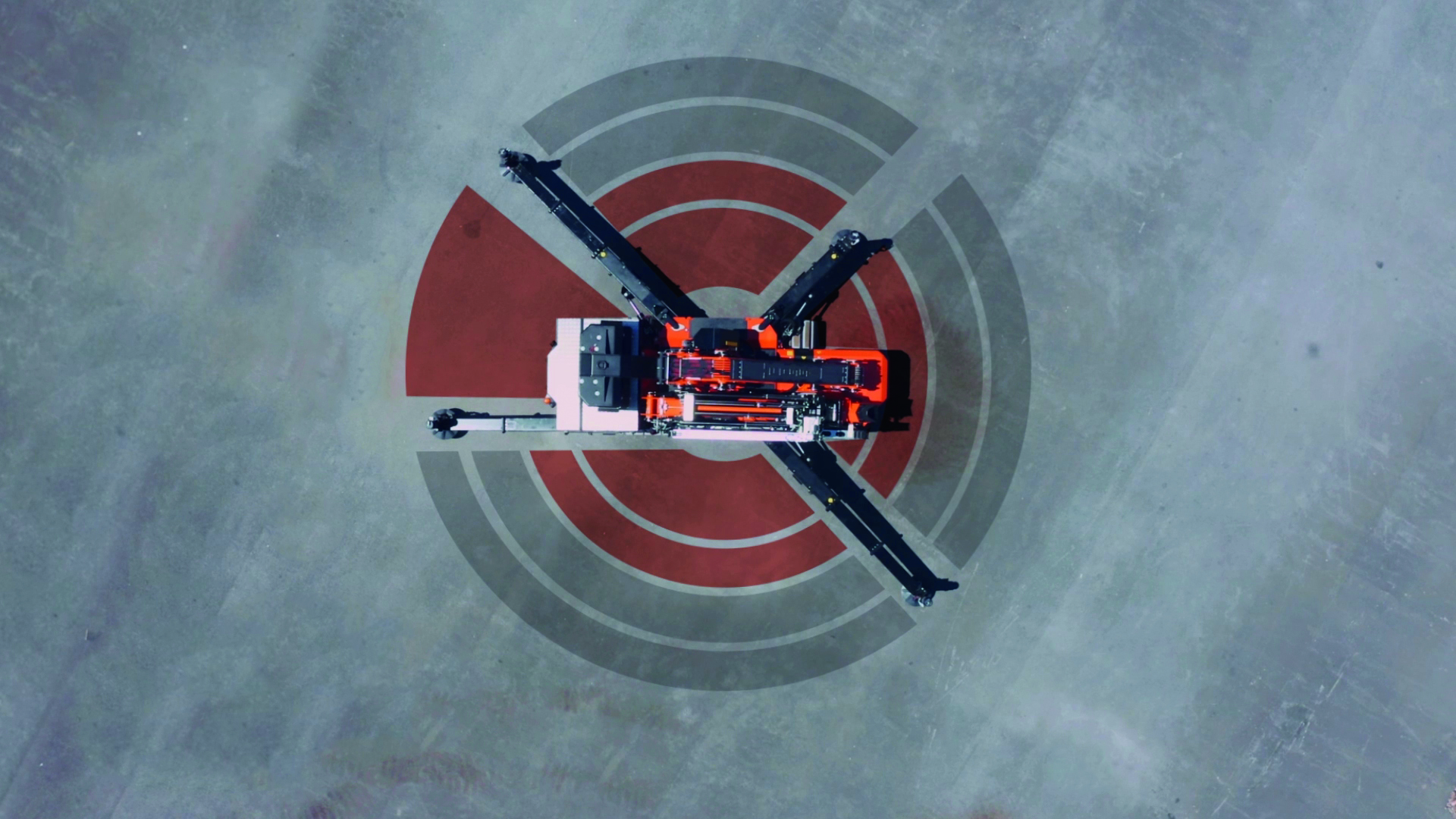

Stability Control Indicator (SCI)
It shows the position of each outrigger.
Options
All mini cranes Jekko can be customized depending on the industry for which they should be used.

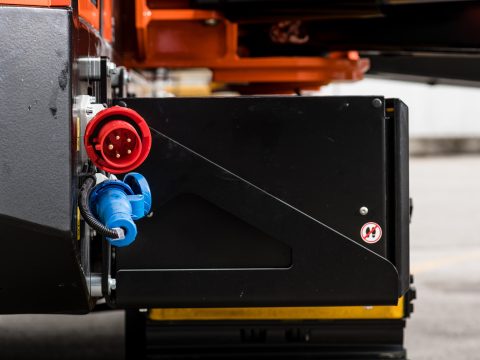

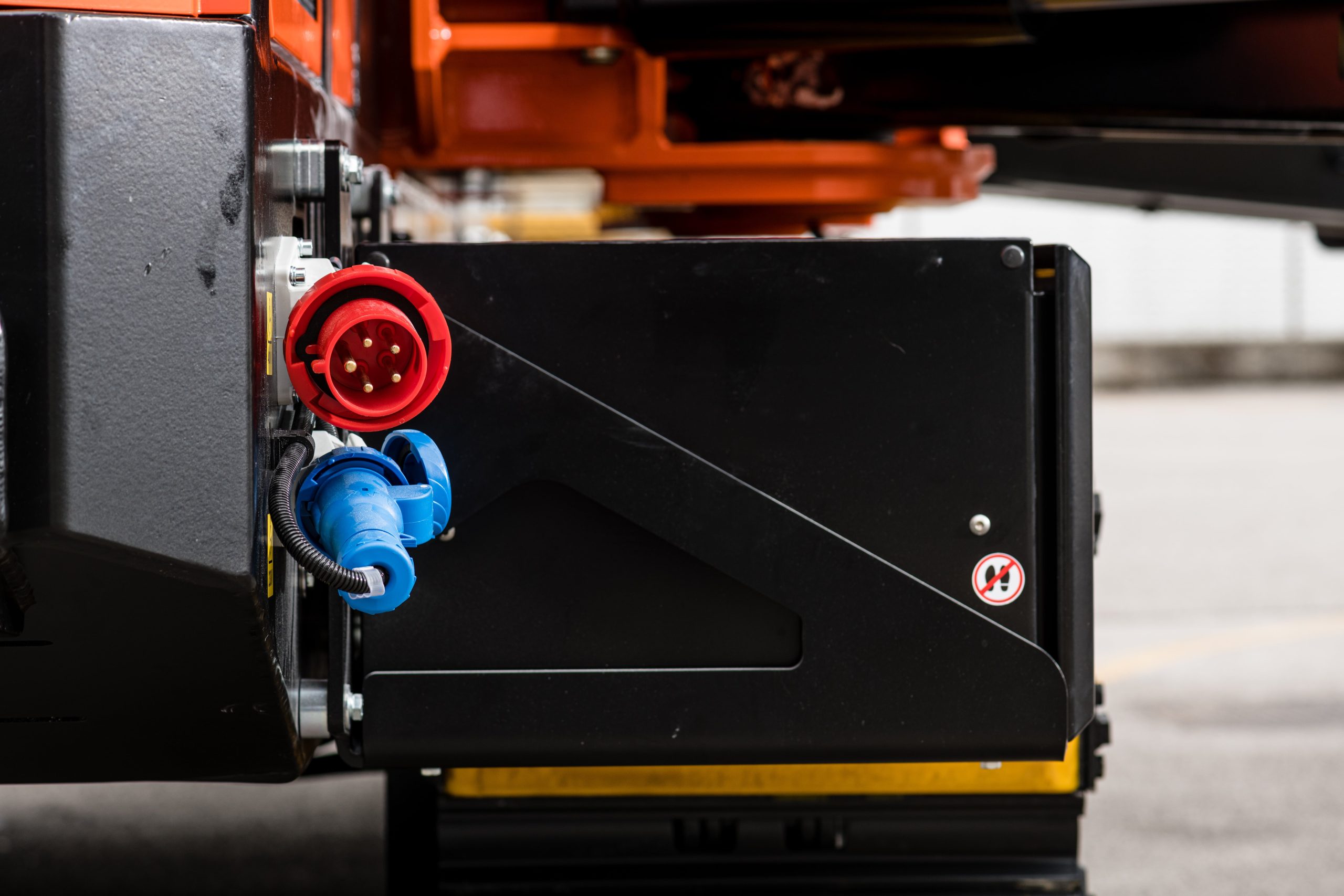

Power Pack
400V or 220V additional electric motor (North America)
Man Basket
Towing winch
Low Marking White Track pads
Low Marking White Track pads
J-Connect
Software for remote assistance

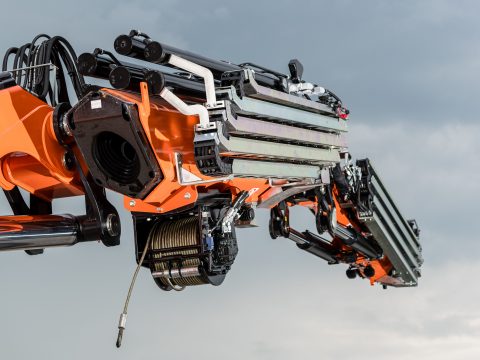

Winch 2 ton
Winch V20, 2 ton with pulley block for 3 lines, 60m rope

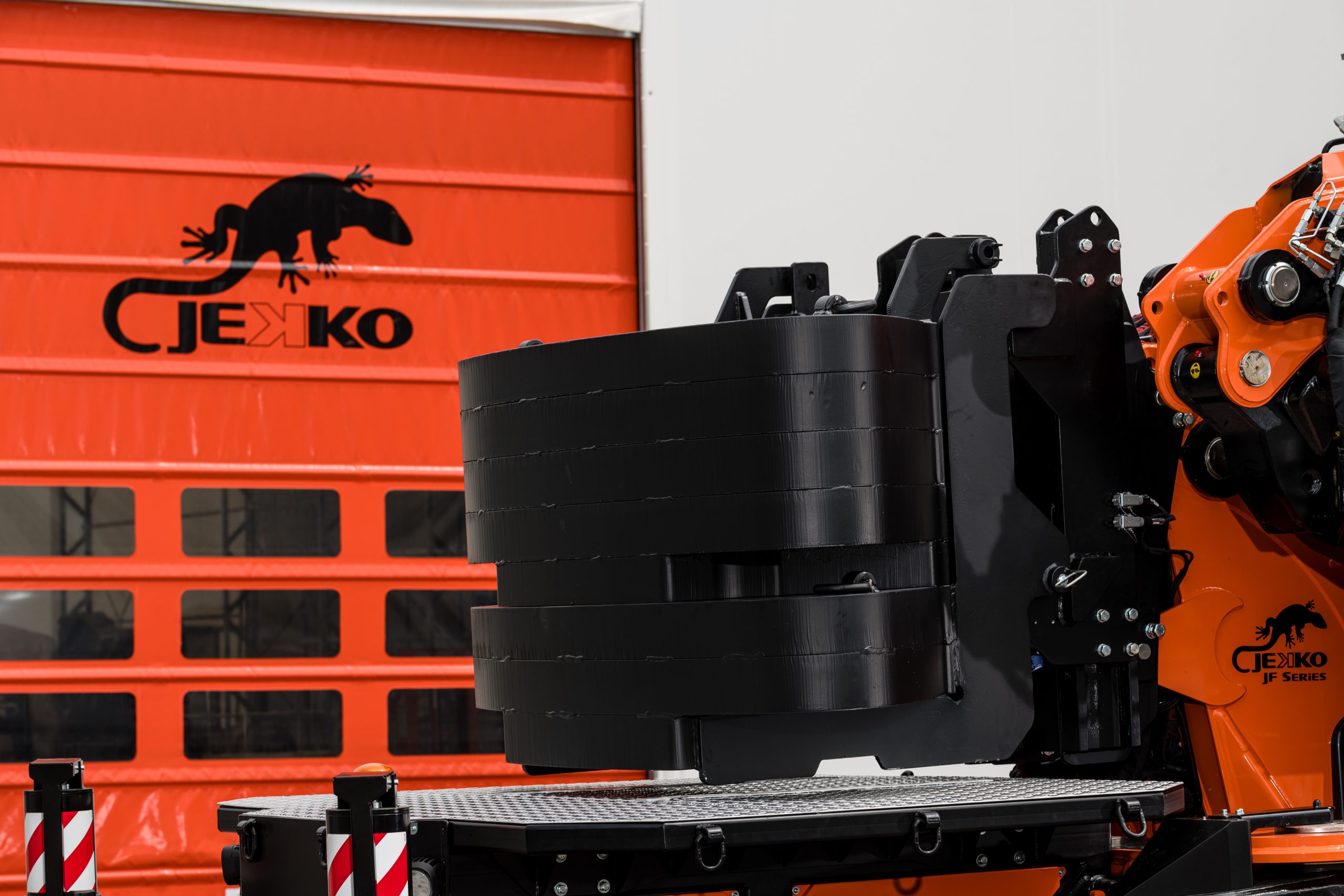

Automatic counterweight dismantling
Automatic counterweight dismantling system
Manual extension
Manual extension for main boom or jib
Searcher hook kit
Searcher hook kit for main boom or jib
Hydraulic Extra Functions
Hydraulic activation for hydraulic accessories such as jibs and manipulators. It is necessary to deliver oil to the machine boom end.
Hydraulic Luffing Jib
Hydraulic luffing jib with link, 3.000 kg SWL, 6 hydraulic extensions
Mobile Elevated Work Platform Kit
Mobile Elevated Work Platform Certification on Man-Basket
Towing Winch Activation
Hydraulic activations for towing winch
Hook Leveling System for Winch
On main boom and jib.
Personalized Colour
Customized paint colour, choice of engine housing/boom or complete crane.
